Medium Pressure Push-in Fittings, 80 bar

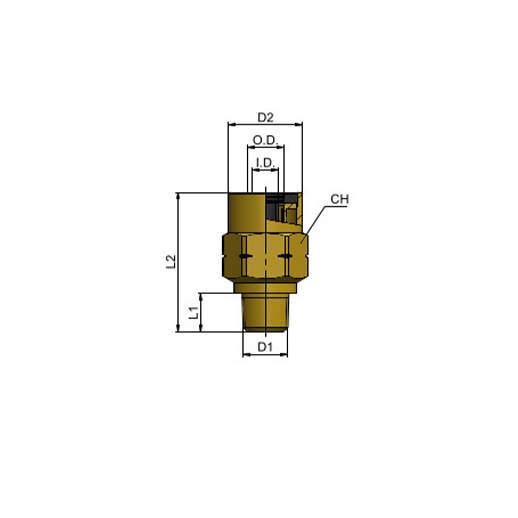

| TYPE | MAT | D1 | WT | WP | AF | D2 | D2IN | CH | G | GOZ | L1 | L1IN | L2 | L2IN | TUBOID | TUBOOD | WPP | WTF | CERTIFICATION 1 | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
| MT11 06 1/8 NPTF | Brass | NPT1/8 | -50/+100 °C | 0/16 bar | --- | 14,5 | 0,571 | 15 | 18,3 | 0,646 | 8,5 | 0,335 | 27 | 1,063 | 4 | 6 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT11 08 1/8 NPTF | Brass | NPT1/8 | -50/+100 °C | 0/16 bar | --- | 16,5 | 0,65 | 17 | 26,4 | 0,931 | 8,5 | 0,335 | 31,1 | 1,224 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
