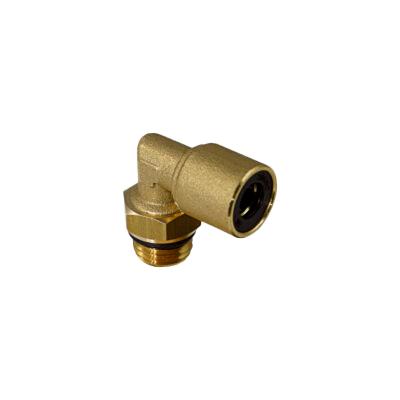

Medium Pressure Push-in Fittings, 80 bar
| TYPE | MAT | D1 | WT | WP | AF | D2 | D3 | CH1 | CH2 | G | GOZ | L1 | L2 | L3 | TUBOID | TUBOOD | WPP | WTF | CERTIFICATION 1 | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
| MT16 06 M10x1 | Brass | M10x1 | -50/+100 °C | 0/16 bar | --- | 14,5 | 16,2 | 14 | 9 | 24,5 | NULL | 6,3 | 19,5 | 25 | 4 | 6 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 08 M10x1 | Brass | M10x1 | -50/+100 °C | 0/16 bar | --- | 16,5 | 16,2 | 14 | 11 | 30,1 | NULL | 6,3 | 20,5 | 26 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 06 M12x1,5 | Brass | M12x1,5 | -50/+100 °C | 0/16 bar | --- | 14,5 | 17,3 | 15 | 9 | 30,2 | NULL | 8,3 | 23,75 | 25 | 4 | 6 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 06 M14x1,5 | Brass | M14x1,5 | -50/+100 °C | 0/16 bar | --- | 14,5 | 19,6 | 17 | 9 | 33,4 | NULL | 8,3 | 23,5 | 25 | 4 | 6 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 06 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 14,5 | 22 | 19 | 11 | 32,1 | NULL | 8,3 | 24 | 26 | 4 | 6 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 08 M12x1,5 | Brass | M12x1,5 | -50/+100 °C | 0/16 bar | --- | 16,5 | 17,3 | 15 | 11 | 35,1 | NULL | 8,3 | 24,5 | 26 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 08 M14x1,5 | Brass | M14x1,5 | -50/+100 °C | 0/16 bar | --- | 16,5 | 19,6 | 17 | 11 | 38 | NULL | 8,3 | 25 | 26 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 08 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 16,5 | 22 | 19 | 11 | 42,7 | NULL | 8,3 | 24,5 | 26 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 08 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 18,5 | 31,2 | 27 | 15 | 82 | NULL | 8,1 | 26,5 | 26 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 10 M12x1,5 | Brass | M12x1,5 | -50/+100 °C | 0/16 bar | --- | 18,5 | 17,3 | 15 | 13 | 44,9 | NULL | 8,3 | 25,5 | 29,3 | 8 | 10 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 10 M14x1,5 | Brass | M14x1,5 | -50/+100 °C | 0/16 bar | --- | 18,5 | 19,6 | 17 | 13 | 45,8 | NULL | 8,3 | 26 | 29,3 | 8 | 10 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 10 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 18,5 | 22 | 19 | 13 | 27,8 | NULL | 8,3 | 26 | 29,3 | 8 | 10 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 10 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 18,5 | 31,2 | 27 | 15 | 77,8 | NULL | 8,1 | 26,5 | 30,3 | 8 | 10 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 12 M12x1,5 | Brass | M12x1,5 | -50/+100 °C | 0/16 bar | --- | 21 | 17,3 | 15 | 15 | 58,4 | NULL | 8,3 | 26,7 | 31 | 9 | 12 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 12 M14x1,5 | Brass | M14x1,5 | -50/+100 °C | 0/16 bar | --- | 21 | 19,6 | 17 | 15 | 58,3 | NULL | 8,3 | 26,8 | 31 | 9 | 12 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 12 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 21 | 22 | 19 | 15 | 60,9 | NULL | 8,3 | 27,7 | 31 | 9 | 12 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 12 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 21 | 31,2 | 27 | 15 | 80,9 | NULL | 8,1 | 27,3 | 31 | 9 | 12 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 15 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 27 | 22 | 19 | 19 | --- | NULL | 8,3 | 30,2 | 37 | 12 | 15 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 15 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 27 | 31,2 | 27 | 19 | --- | NULL | 8,1 | 30,5 | 37 | 12 | 15 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 16 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 27 | 22 | 19 | 19 | --- | NULL | 8,3 | 30,2 | 37,5 | 12 | 16 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 16 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 27 | 31,2 | 27 | 19 | --- | NULL | 8,1 | 30,5 | 37,5 | 12 | 16 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 18 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 29 | 31,2 | 27 | 21 | --- | NULL | 8,1 | 32,5 | 39 | 14 | 18 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
