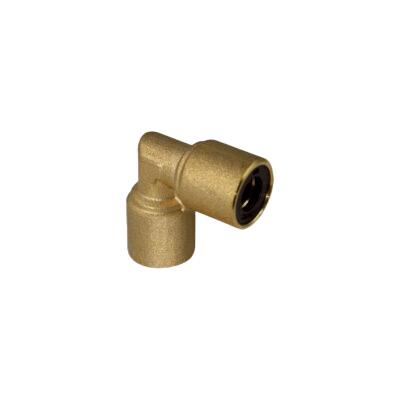

Medium Pressure Push-in Fittings, 80 bar

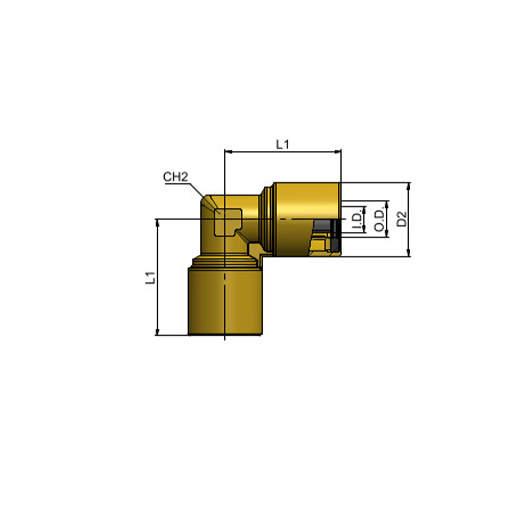

| TYPE | MAT | D1 | WT | WP | AF | D2 | CH2 | G | L1 | TUBOID | TUBOOD | WPP | WTF | CERTIFICATION 1 | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
| MT28 06 06 | Brass | --- | -50/+100 °C | 0/16 bar | --- | 14,5 | 9 | 28,7 | 25 | 4 | 6 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT28 08 08 | Brass | --- | -50/+100 °C | 0/16 bar | --- | 16,5 | 11 | 35,7 | 26 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT28 10 10 | Brass | --- | -50/+100 °C | 0/16 bar | --- | 18,5 | 13 | 48,4 | 29,3 | 8 | 10 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT28 12 12 | Brass | --- | -50/+100 °C | 0/16 bar | --- | 21 | 15 | 66,2 | 31 | 9 | 12 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT28 15 15 | Brass | --- | -50/+100 °C | 0/16 bar | --- | 27 | 19 | --- | 37 | 12 | 15 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT28 16 16 | Brass | --- | -50/+100 °C | 0/16 bar | --- | 27 | 19 | --- | 37,5 | 12 | 16 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT28 18 18 | Brass | --- | -50/+100 °C | 0/16 bar | --- | 29 | 21 | --- | 39 | 14 | 18 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
