Medium Pressure Push-in Fittings, 80 bar

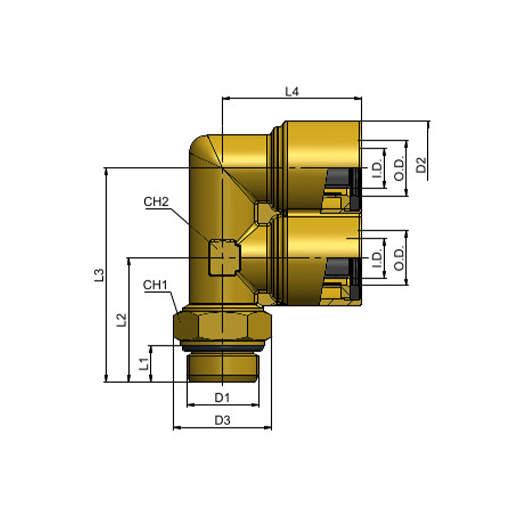

| TYPE | MAT | D1 | WT | WP | AF | D2 | D3 | CH1 | CH2 | L1 | L2 | L3 | L4 | TUBOID | TUBOOD | WPP | WTF | CERTIFICATION 1 | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
| MT16 12 M16x1,5 D | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 21 | 22 | 19 | 15 | 8,3 | 27,7 | 47,7 | 31 | 9 | 12 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT16 12 M22x1,5 D | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 21 | 31,2 | 27 | 15 | 8,1 | 27,3 | 47,3 | 31 | 9 | 12 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
