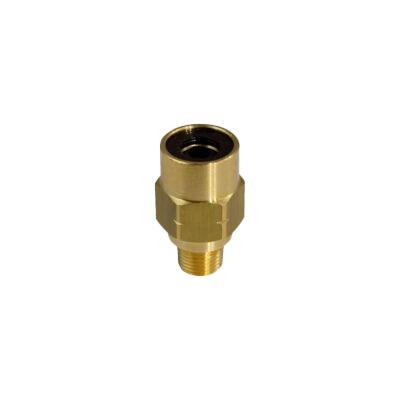

Medium Pressure Push-in Fittings, 80 bar

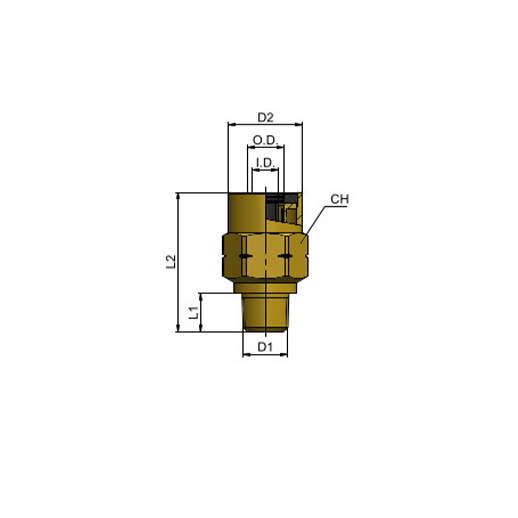

| TYPE | MAT | D1 | WT | WP | AF | D2 | D3 | CH | G | L1 | L2 | TUBOID | TUBOOD | WPP | WTF | CERTIFICATION 1 | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
| MT12 06 M10x1 | Brass | M10x1 | -50/+100 °C | 0/16 bar | --- | 14,5 | 17 | 15 | 17,7 | 7 | 26 | 4 | 6 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 08 M10x1 | Brass | M10x1 | -50/+100 °C | 0/16 bar | --- | 16,5 | 19 | 17 | 27,6 | 7 | 31 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 06 M12x1,5 | Brass | M12x1,5 | -50/+100 °C | 0/16 bar | --- | 14,5 | 17 | 15 | 20,4 | 8,5 | 27,5 | 4 | 6 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 06 M14x1,5 | Brass | M14x1,5 | -50/+100 °C | 0/16 bar | --- | 14,5 | 17 | 15 | 23,8 | 8,5 | 27 | 4 | 6 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 06 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 14,5 | 20 | 15 | 25,9 | 8,5 | 25 | 4 | 6 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 08 M12x1,5 | Brass | M12x1,5 | -50/+100 °C | 0/16 bar | --- | 16,5 | 19 | 17 | 29,9 | 8,5 | 32,5 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 08 M14x1,5 | Brass | M14x1,5 | -50/+100 °C | 0/16 bar | --- | 16,5 | 19 | 17 | 24,8 | 8,5 | 27,5 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 08 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 16,5 | 20 | 17 | 27,8 | 8,5 | 27 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 08 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 16,5 | 25,5 | 17 | 39,4 | 8,5 | 23 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 10 M12x1,5 | Brass | M12x1,5 | -50/+100 °C | 0/16 bar | --- | 18,5 | 21 | 19 | 35,7 | 8,5 | 34,7 | 8 | 10 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 10 M14x1,5 | Brass | M14x1,5 | -50/+100 °C | 0/16 bar | --- | 18,5 | 21 | 19 | 39,9 | 8,5 | 34,7 | 8 | 10 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 10 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 18,5 | 22 | 20 | 27,8 | 8,5 | 29,5 | 8 | 10 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 10 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 18,5 | 25,5 | 20 | 42,9 | 8,5 | 25,5 | 8 | 10 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 12 M12x1,5 | Brass | M12x1,5 | -50/+100 °C | 0/16 bar | --- | 20,5 | 23 | 21 | 40,4 | 8,5 | 35,5 | 9 | 12 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 12 M14x1,5 | Brass | M14x1,5 | -50/+100 °C | 0/16 bar | --- | 20,5 | 23 | 21 | 43 | 8,5 | 35,5 | 9 | 12 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 12 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 20,5 | 23 | 21 | 45 | 8,5 | 34,5 | 9 | 12 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 12 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 20,5 | 25,5 | 21 | 44 | 8,5 | 27,5 | 9 | 12 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 15 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 25 | 28 | 25 | --- | 8,5 | 37,7 | 12 | 15 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 15 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 25 | 28,5 | 26 | --- | 8,5 | 32,2 | 12 | 15 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 16 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 26 | 29 | 26 | --- | 8,5 | 37,7 | 12 | 16 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 16 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 26 | 30 | 27 | --- | 8,5 | 32,2 | 12 | 16 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT12 18 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 28 | 31,5 | 29 | --- | 8,5 | 39,2 | 14 | 18 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
