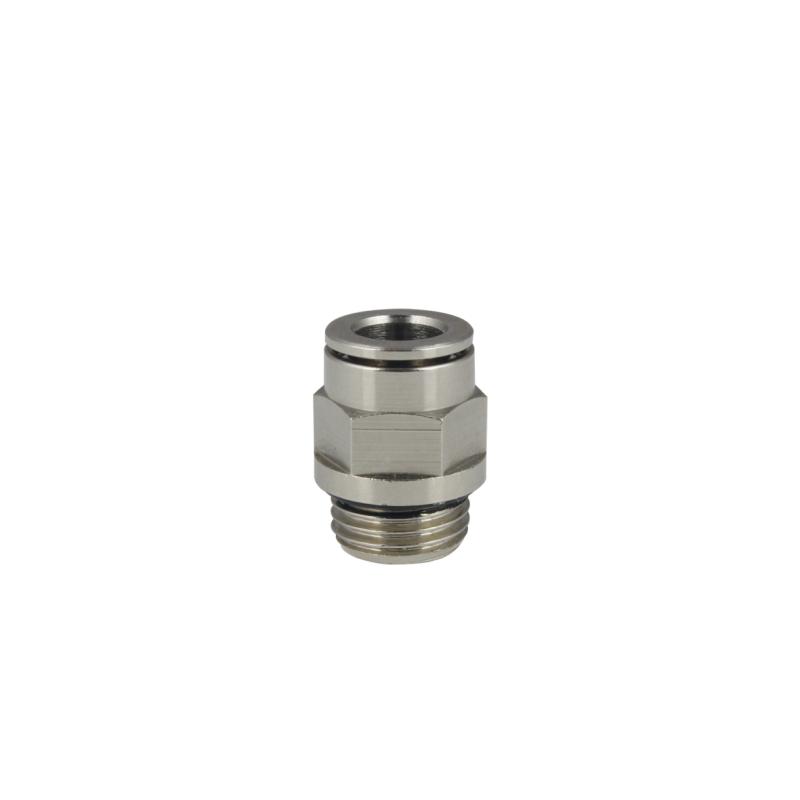

Push in male BSPP - MA12 14 38
14 mm - G3/8
4204953

Tube størrelse (mm): 14
Udvendig gevind: 3/8
MA12 14 38
A0020073
MOQ/Box size: 10
Part Number: A0020073
Description: MA12 14 38
Weight (kg): 0,0375
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G3/8
Tube size (en): 14
Configuration (en): Straight
Product Family (en): Push-In Fittings

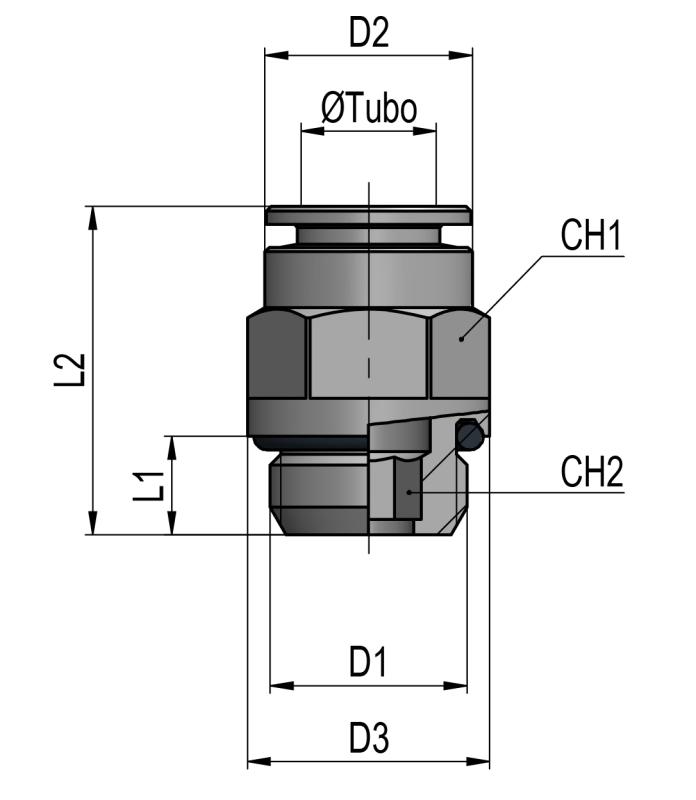

D tube: 14
D tube2: -
D1: G3/8
D1 (in): -
D2: 21,9
D2 (in): .862
D3: 25
D3 (in): .984
L1: 7
L2: 32
L2 (in): 1.260
L3: -
L3 (in): -
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 22
CH2: 10
