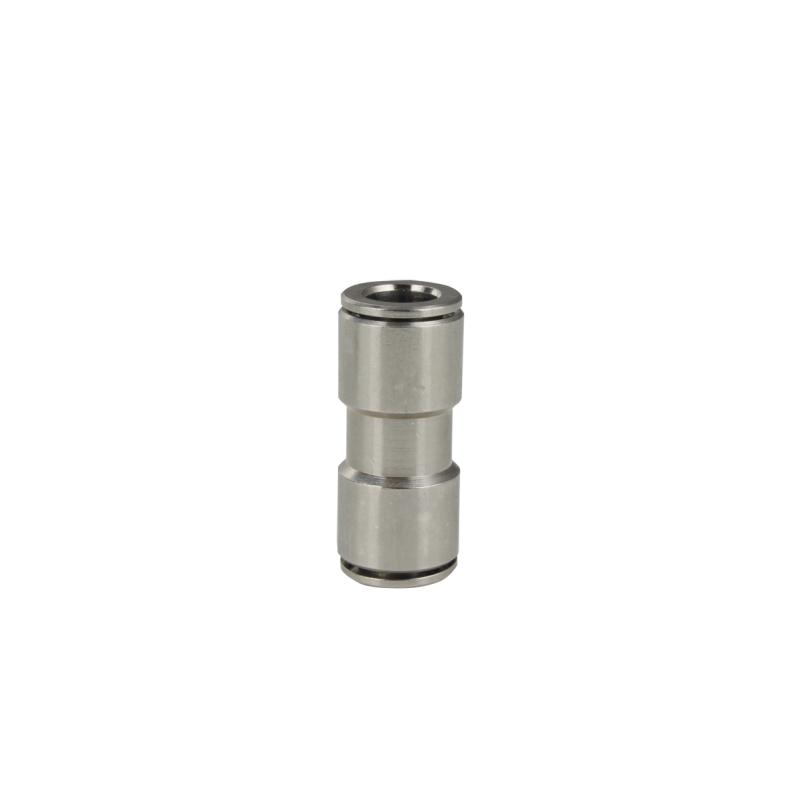

Push in union - MA26 14 12
14 mm - 12 mm
4205066

Tube størrelse (mm): 14 - 12
MA26 14 12
A0167060
MOQ/Box size: 10

Part Number: A0167060
Description: MA26 14 12
Weight (kg): 0,04435
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: NA
Thread size: NA
Tube size (en): 14
Configuration (en): Straight
Product Family (en): Push-In Fittings

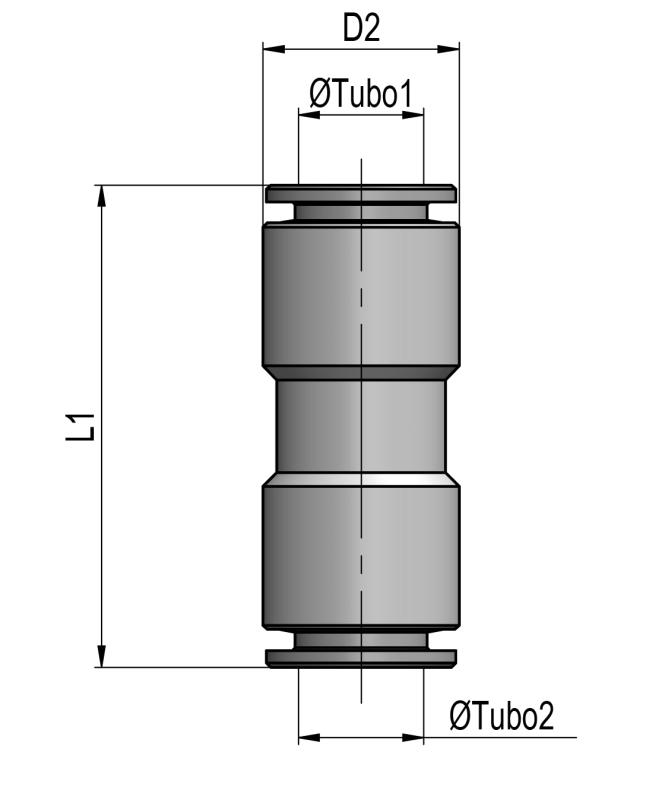

D tube: 14
D tube2: 12
D1: 22
D1 (in): .866
D2: 19
D2 (in): .748
D3: -
D3 (in): -
L1: 44,5
L2: -
L2 (in): -
L3: -
L3 (in): -
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: -
CH2: -
