PUSH IN

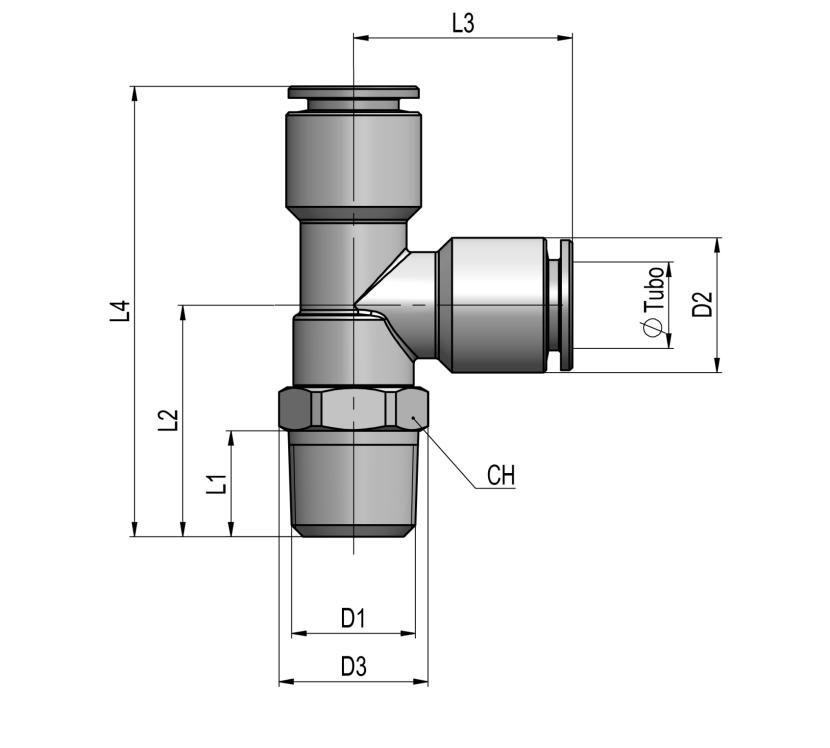

| TYPE | MAT | D1 | WT | WP | AF | D2 | D2IN | D3 | D3IN | CH | DTUBO | G | GOZ | L1 | L1IN | L2 | L2IN | L3 | L3IN | L4 | L4IN | TV | TVH | WPP | WTF | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
| MA23 04 18 PTFE | Brass Nickel Plated | R1/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 9,1 | 0,358 | 14,5 | 0,571 | 13 | 4 | 22 | 0,776 | 7,5 | 0,295 | 20,2 | 0,795 | 19,5 | 0,768 | 39,7 | 1,563 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA23 04 14 PTFE | Brass Nickel Plated | R1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 9,1 | 0,358 | 15,5 | 0,61 | 14 | 4 | 25,5 | 0,899 | 11 | 0,433 | 24,2 | 0,953 | 19,5 | 0,768 | 43,7 | 1,72 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA23 06 18 PTFE | Brass Nickel Plated | R1/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 12 | 0,472 | 14,5 | 0,571 | 13 | 6 | 27,5 | 0,97 | 7,5 | 0,295 | 20,2 | 0,795 | 22 | 0,866 | 42,2 | 1,661 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA23 06 14 PTFE | Brass Nickel Plated | R1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 12 | 0,472 | 15,5 | 0,61 | 14 | 6 | 31 | 1,093 | 11 | 0,433 | 24,2 | 0,953 | 22 | 0,866 | 46,2 | 1,819 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA23 08 18 PTFE | Brass Nickel Plated | R1/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 14 | 0,551 | 14,5 | 0,571 | 13 | 8 | 31 | 1,093 | 7,5 | 0,295 | 20 | 0,787 | 22,5 | 0,886 | 42,5 | 1,673 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA23 08 14 PTFE | Brass Nickel Plated | R1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 14 | 0,551 | 15,5 | 0,61 | 14 | 8 | 35 | 1,235 | 11 | 0,433 | 24 | 0,945 | 22,5 | 0,886 | 46,5 | 1,831 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA23 10 14 PTFE | Brass Nickel Plated | R1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 16 | 0,63 | 20 | 0,787 | 18 | 10 | 50 | 1,764 | 11 | 0,433 | 26,5 | 1,043 | 26 | 1,024 | 52,5 | 2,067 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA23 10 38 PTFE | Brass Nickel Plated | R3/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 16 | 0,63 | 20 | 0,787 | 18 | 10 | 51 | 1,799 | 11,5 | 0,453 | 27 | 1,063 | 26 | 1,024 | 53 | 2,087 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA23 12 38 PTFE | Brass Nickel Plated | R3/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 19 | 0,748 | 22,5 | 0,886 | 20 | 12 | 75 | 2,646 | 11,5 | 0,453 | 30,5 | 1,201 | 28,5 | 1,122 | 59 | 2,323 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA23 12 12 PTFE | Brass Nickel Plated | R1/2 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 19 | 0,748 | 24,5 | 0,965 | 22 | 12 | 83,5 | 2,945 | 14 | 0,551 | 33,5 | 1,319 | 28,5 | 1,122 | 62 | 2,441 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
