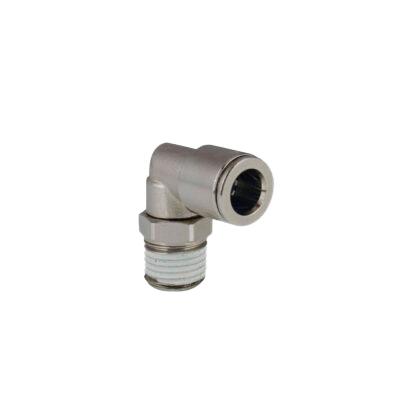

PUSH IN 90° M BSPT

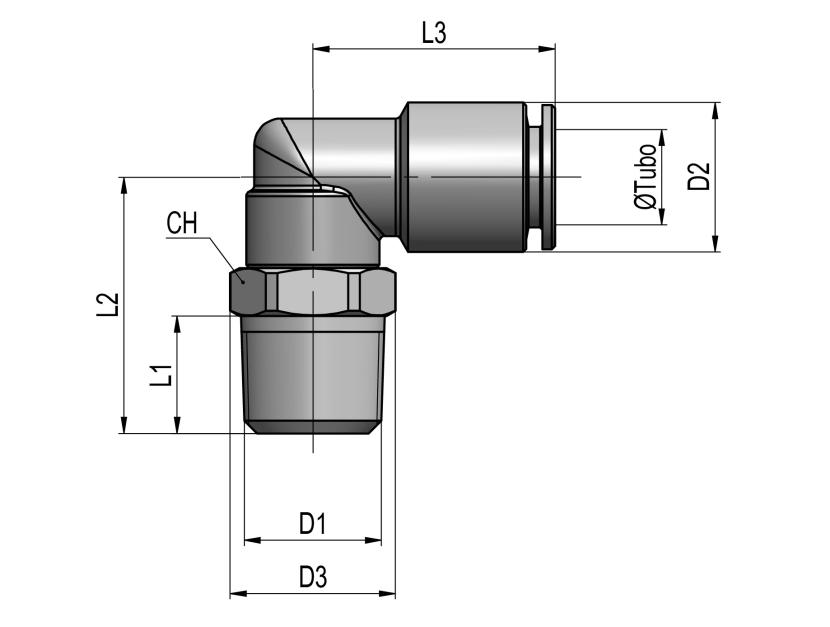

TYPE | MAT | D1 | WT | WP | AF | D2 | D2IN | D3 | D3IN | CH | DTUBO | G | L1 | L1IN | L2 | L2IN | L3 | L3IN | OZ | TV | TVH | WPP | WTF | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
MA15 04 18 PTFE | Brass Nickel Plated | R1/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 9,1 | 0,358 | 11,2 | 0,441 | 10 | 4 | 10,8 | 7,5 | 0,295 | 17,85 | 0,703 | 19,5 | 0,768 | 0,381 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 04 14 PTFE | Brass Nickel Plated | R1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 9,1 | 0,358 | 15,5 | 0,61 | 14 | 4 | 20,9 | 11 | 0,433 | 24,2 | 0,953 | 19,5 | 0,768 | 0,737 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 06 18 PTFE | Brass Nickel Plated | R1/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 12 | 0,472 | 14,5 | 0,571 | 13 | 6 | 19,4 | 7,5 | 0,295 | 20,2 | 0,795 | 22 | 0,866 | 0,684 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 06 14 PTFE | Brass Nickel Plated | R1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 12 | 0,472 | 15,5 | 0,61 | 14 | 6 | 23,9 | 11 | 0,433 | 24,2 | 0,953 | 22 | 0,866 | 0,843 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 06 38 PTFE | Brass Nickel Plated | R3/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 12 | 0,472 | 20 | 0,787 | 18 | 6 | --- | 11,5 | 0,453 | 25,2 | 0,992 | 22 | 0,866 | --- | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 08 18 PTFE | Brass Nickel Plated | R1/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 14 | 0,551 | 14,5 | 0,571 | 13 | 8 | 23 | 7,5 | 0,295 | 20 | 0,787 | 22,5 | 0,886 | 0,811 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 08 14 PTFE | Brass Nickel Plated | R1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 14 | 0,551 | 15,5 | 0,61 | 14 | 8 | 26,4 | 11 | 0,433 | 24 | 0,945 | 22,5 | 0,886 | 0,931 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 08 38 PTFE | Brass Nickel Plated | R3/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 14 | 0,551 | 20 | 0,787 | 18 | 8 | 39,2 | 11,5 | 0,453 | 27 | 1,063 | 23 | 0,906 | 1,383 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 08 12 PTFE | Brass Nickel Plated | R1/2 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 14 | 0,551 | 24,5 | 0,965 | 22 | 8 | --- | 14 | 0,551 | 31 | 1,22 | 23 | 0,906 | --- | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 10 18 PTFE | Brass Nickel Plated | R1/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 16 | 0,63 | 20 | 0,787 | 16 | 10 | --- | 7,5 | 0,295 | 26,5 | 1,043 | 23 | 0,906 | --- | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 10 14 PTFE | Brass Nickel Plated | R1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 16 | 0,63 | 20 | 0,787 | 18 | 10 | 38,6 | 11 | 0,433 | 26,5 | 1,043 | 26 | 1,024 | 1,362 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 10 38 PTFE | Brass Nickel Plated | R3/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 16 | 0,63 | 20 | 0,787 | 18 | 10 | 41 | 11,5 | 0,453 | 27 | 1,063 | 26 | 1,024 | 1,446 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 10 12 PTFE | Brass Nickel Plated | R1/2 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 16 | 0,63 | 24,5 | 0,965 | 22 | 10 | --- | 14 | 0,551 | 31 | 1,22 | 26 | 1,024 | --- | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 12 14 PTFE | Brass Nickel Plated | R1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 19 | 0,748 | 22,5 | 0,886 | 20 | 12 | --- | 11 | 0,433 | 30 | 1,181 | 28,5 | 1,122 | --- | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 12 38 PTFE | Brass Nickel Plated | R3/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 19 | 0,748 | 22,5 | 0,886 | 20 | 12 | 61,8 | 11,5 | 0,453 | 30,5 | 1,201 | 28,5 | 1,122 | 2,18 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 12 12 PTFE | Brass Nickel Plated | R1/2 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 19 | 0,748 | 24,5 | 0,965 | 22 | 12 | 71,5 | 14 | 0,551 | 33,5 | 1,319 | 28,5 | 1,122 | 2,522 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 14 38 PTFE | Brass Nickel Plated | R3/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 22 | 0,866 | 22,5 | 0,886 | 20 | 14 | 66,2 | 11,5 | 0,453 | 30,5 | 1,201 | 32 | 1,26 | 2,335 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
MA15 14 12 PTFE | Brass Nickel Plated | R1/2 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 22 | 0,866 | 24,5 | 0,965 | 22 | 14 | 74,6 | 14 | 0,551 | 33,5 | 1,319 | 32 | 1,26 | 2,631 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
