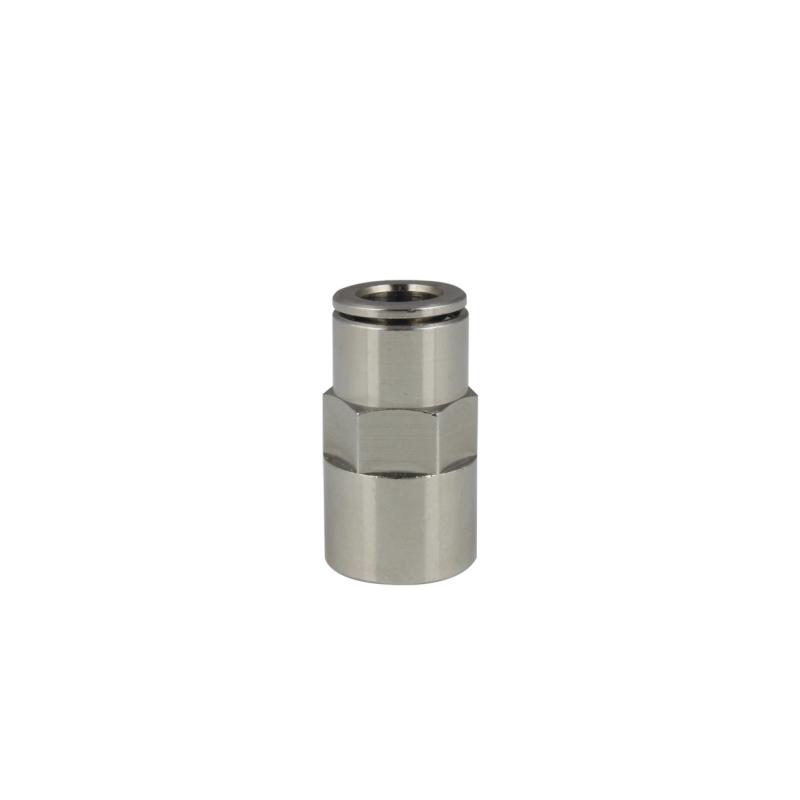

Push in female BSPP - MA13 08 38
8 mm - G3/8
4204963

Tube størrelse (mm): 8
Indvendig gevind: 3/8
MA13 08 38
A0030043
MOQ/Box size: 25
Part Number: A0030043
Description: MA13 08 38
Weight (kg): 0,02588
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G3/8
Tube size (en): 8
Configuration (en): Straight
Product Family (en): Push-In Fittings

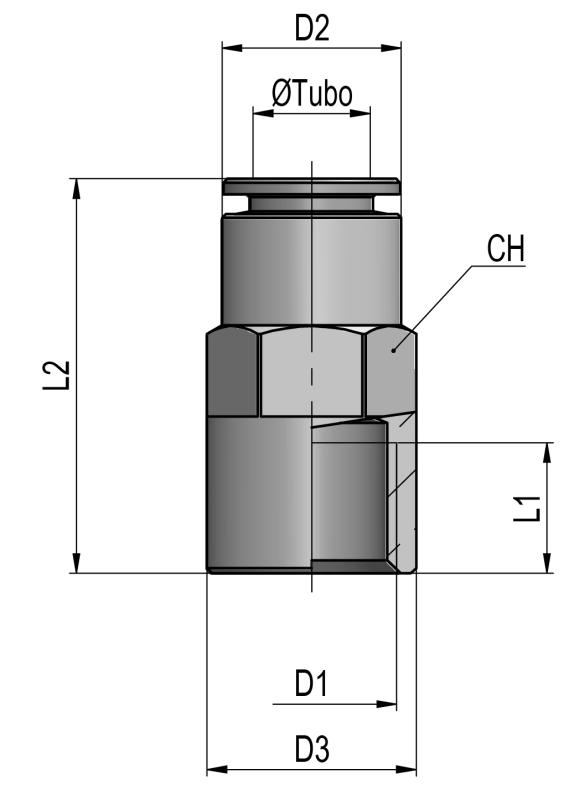

D tube: 8
D tube2: -
D1: G3/8
D1 (in): -
D2: 13,9
D2 (in): .547
D3: 20
D3 (in): .787
L1: 11
L2: 31
L2 (in): 1.220
L3: -
L3 (in): -
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 14
CH2: -
