Cetop og rørmonteret 4/2 and 4/3
Directional Control Valves
Cetop3 - Ng6 Argo Hytos 4/3Ctop3 (NG6) E8338PV-24V Vikplogsventil 3-funktioner1260177

E8338PV-24V Vikplogsventil 3-funktioner
1260177

Valve setup: With coils 24VDC
Brand: Piippo Hydraulics
Working pressure: 210
Q max l/min: 50

Hent PDF

Download E8338PV_EN.pdf

Download E8338PV_SE.pdf

In articulated plow operation max. wing length 60cm
Equivalent to 1/2 "size E8312PV for the largest plows

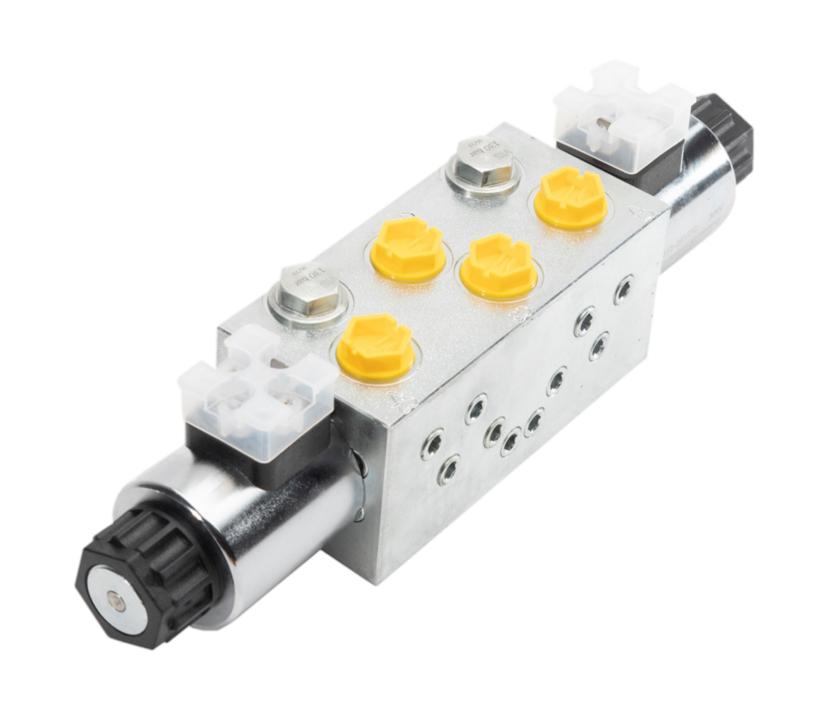

Solenoid controlled 8/3 directional valve

-connection R3/8", (T, P1,P2)
-voltage 24VDC (for 12VDC 2X 1220012 coils)
-flow 50 l/min
-max. pressure 210 bar
-fixed shock relief valves in ports C1 and C2
-inlet valves in ports C3 and C4
-tank/pressure accumulator connection T
