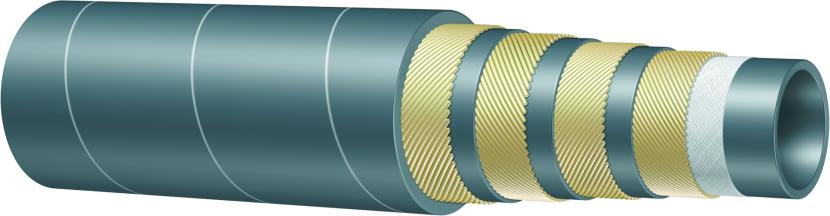

WATERBLAST - WB15L - 3/4" - 1000 Bar
1003475
Tube: oil and water resistant synthetic rubber.
Reinforcement: four high tensile steel spirals.
Cover: oil, water and ozone resistant synthetic rubber.
Application: vey high pressure water jetting.
Temperature: -10 °C +70 °C (14 °F +158 °F)
Length: multiples of lengths shown in below grid.
DH SCAN crimp short code: WB15L
ID (Dash): 12
ID (mm): 19
ID (in): 3/4"
OD (mm): 32,3
WP (Bar): 1000
WP (psi): 14500
BP (Bar): 2500
BP (psi): 36000
BR (mm): 280
Length (m): 15,25
DH SCAN crimp short code: (http://crimp.dunlophiflex.se/Home/Index/DK): WB15L
