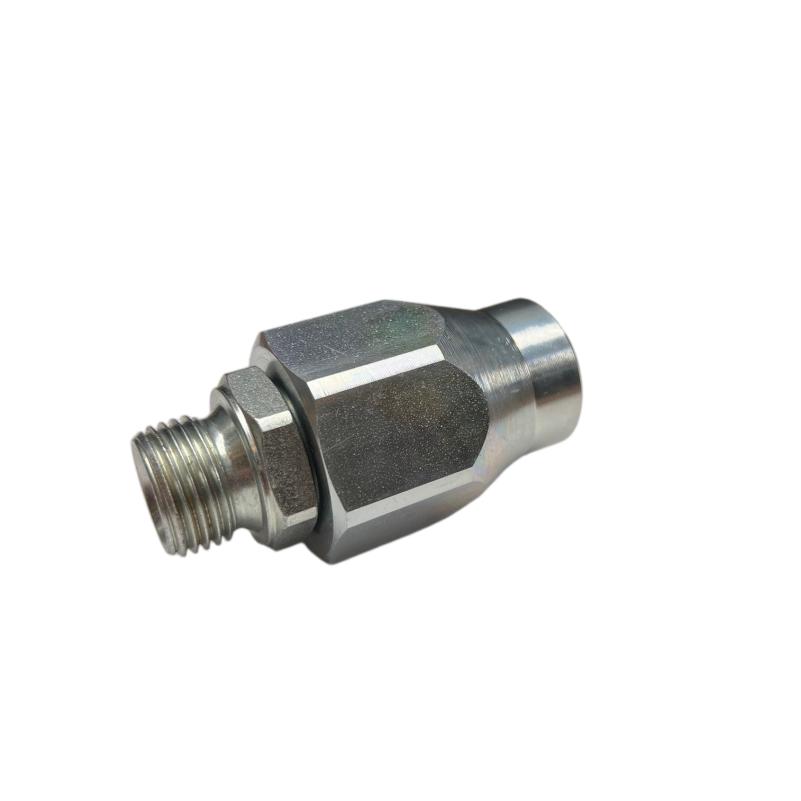

Swivel connector - BSP60 - 1/4-19" - 400
1221183
SWCDH-BSPP
SWIVEL CONNECTOR BSP
Solid Female - Solid Male
Temperature: -40 °C + 100 °C
Viscosity Range: 10 to 200 cSt
Sealing: NBR
Material: Galvanized steel
Notes: For different conditions of use and cavities, contact the sales department
Configuration: straight
Thread 1: BSP60
ID (Dash): 4
F1: 1/4-19"
Thread 2: BSP60
F2: 1/4-19"
CH (mm): 30
L1 (mm): 66
WP (bar): 400
:
