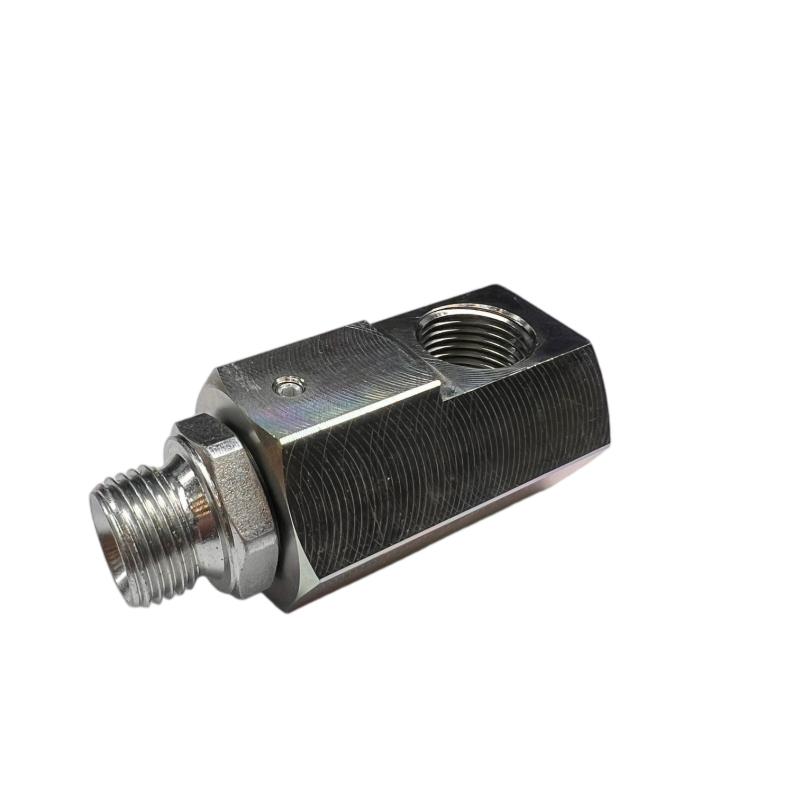

Swivel connector - BSP60 - 1 1/4-11" - 250
1221181
SWCDH-BSPP
SWIVEL CONNECTOR BSP
Solid Female - Solid Male
Temperature: -40 °C + 100 °C
Viscosity Range: 10 to 200 cSt
Sealing: NBR
Material: Galvanized steel
Notes: For different conditions of use and cavities, contact the sales department
Configuration: 90
Thread 1: BSP60
ID (Dash): 20
F1: 1 1/4-11"
Thread 2: BSP60
F2: 1 1/4-11"
CH (mm):
L1 (mm): 118
WP (bar): 250
:
