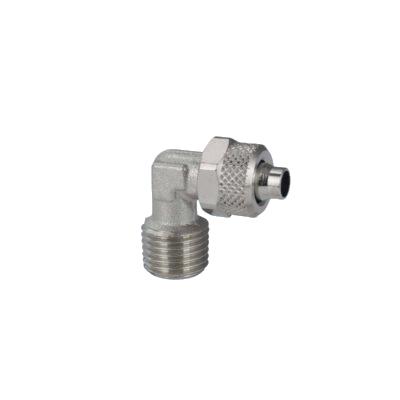

PUSH ON 90°

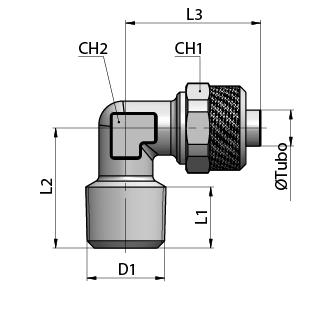

| CODE | TYPE | MAT | D1 | WT | WP | AF | CH1 | CH2 | G | L1 | L1IN | L2 | L2IN | L3 | L3IN | OZ | TV | VAR_E_TUBO | VAR_I_TUBO | WPP | WTF | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
| 02060010 | MC16 04 M5 | Brass Nickel Plated | M5x0,8 | -40/+150 °C | -0,99/25 bar | General Pneumatics | 7 | 9 | 10,4 | 5 | 0,197 | 15,5 | 0,61 | 20 | 0,787 | 0,367 | -99 | 4 | 2,5 | -14/363 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 02060011 | MC16 04 18 | Brass Nickel Plated | R1/8 | -40/+150 °C | -0,99/25 bar | General Pneumatics | 7 | 9 | 10,7 | 7,5 | 0,295 | 17 | 0,669 | 20 | 0,787 | 0,377 | -99 | 4 | 2,5 | -14/363 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 02060031 | MC16 06 18 | Brass Nickel Plated | R1/8 | -40/+150 °C | -0,99/25 bar | General Pneumatics | 12 | 8 | 16,2 | 8 | 0,315 | 17 | 0,669 | 22,5 | 0,886 | 0,571 | -99 | 6 | 4 | -14/363 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 02060032 | MC16 06 14 | Brass Nickel Plated | R1/4 | -40/+150 °C | -0,99/25 bar | General Pneumatics | 12 | 10 | 21,6 | 11 | 0,433 | 20 | 0,787 | 22,5 | 0,886 | 0,762 | -99 | 6 | 4 | -14/363 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 02060033 | MC16 06 38 | Brass Nickel Plated | R3/8 | -40/+150 °C | -0,99/25 bar | General Pneumatics | 12 | 11 | 30,3 | 11,5 | 0,453 | 22,5 | 0,886 | 23,5 | 0,925 | 1,069 | -99 | 6 | 4 | -14/363 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 02060041 | MC16 08 18 | Brass Nickel Plated | R1/8 | -40/+150 °C | -0,99/25 bar | General Pneumatics | 14 | 10 | 19,4 | 8 | 0,315 | 17 | 0,669 | 22,5 | 0,886 | 0,684 | -99 | 8 | 6 | -14/363 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 02060042 | MC16 08 14 | Brass Nickel Plated | R1/4 | -40/+150 °C | -0,99/25 bar | General Pneumatics | 14 | 10 | 23,3 | 11 | 0,433 | 20 | 0,787 | 22,5 | 0,886 | 0,822 | -99 | 8 | 6 | -14/363 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 02060043 | MC16 08 38 | Brass Nickel Plated | R3/8 | -40/+150 °C | -0,99/25 bar | General Pneumatics | 14 | 11 | 31 | 11,5 | 0,453 | 22,5 | 0,886 | 24 | 0,945 | 1,093 | -99 | 8 | 6 | -14/363 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 02060051 | MC16 10 18 | Brass Nickel Plated | R1/8 | -40/+150 °C | -0,99/25 bar | General Pneumatics | 16 | 11 | 27,6 | 8 | 0,315 | 18,5 | 0,728 | 25,5 | 1,004 | 0,974 | -99 | 10 | 8 | -14/363 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 02060052 | MC16 10 14 | Brass Nickel Plated | R1/4 | -40/+150 °C | -0,99/25 bar | General Pneumatics | 16 | 11 | 30,5 | 11 | 0,433 | 21,5 | 0,846 | 25,5 | 1,004 | 1,076 | -99 | 10 | 8 | -14/363 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 02060053 | MC16 10 38 | Brass Nickel Plated | R3/8 | -40/+150 °C | -0,99/25 bar | General Pneumatics | 16 | 11 | 34,7 | 11,5 | 0,453 | 22,5 | 0,886 | 25,5 | 1,004 | 1,224 | -99 | 10 | 8 | -14/363 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 02060063 | MC16 12 38 | Brass Nickel Plated | R3/8 | -40/+150 °C | -0,99/25 bar | General Pneumatics | 18 | 14 | 46 | 11,5 | 0,453 | 24,5 | 0,965 | 30 | 1,181 | 1,623 | -99 | 12 | 10 | -14/363 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 02060064 | MC16 12 12 | Brass Nickel Plated | R1/2 | -40/+150 °C | -0,99/25 bar | General Pneumatics | 18 | 17 | 66,5 | 14 | 0,551 | 28 | 1,102 | 30,5 | 1,201 | 2,346 | -99 | 12 | 10 | -14/363 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 02060084 | MC16 15 12 | Brass Nickel Plated | R1/2 | -40/+150 °C | -0,99/25 bar | General Pneumatics | 22 | 17 | 69,6 | 14 | 0,551 | 28 | 1,102 | 34 | 1,339 | 2,455 | -99 | 15 | 12,5 | -14/363 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
| 02069021 | MC16 05 18 | Brass Nickel Plated | R1/8 | -40/+150 °C | -0,99/25 bar | General Pneumatics | 8 | 8 | 10,8 | 8 | 0,315 | 17 | 0,669 | 21,5 | 0,846 | 0,381 | -99 | 5 | 3 | -14/363 psi | -40/302 °F | SILICONE FREE | RoHS | REACH |
