Part Number: A0190090
Description: MA29 16 16
Weight (kg): 0,124
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: NA
Thread size: NA
Tube size (en): 16
Configuration (en): Tee
Product Family (en): Push-In Fittings

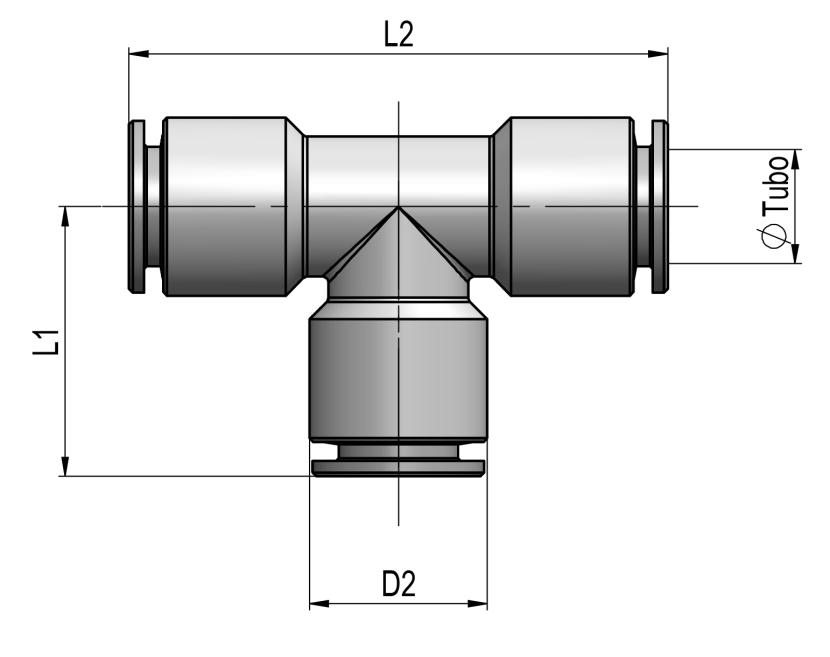

D tube: 16
D tube2: 16
D1: 24
D1 (in): .945
D2: 24
D2 (in): .945
D3: -
D3 (in): -
L1: 34,5
L2: 69
L2 (in): 2.717
L3: -
L3 (in): -
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: -
CH2: -
>
>
