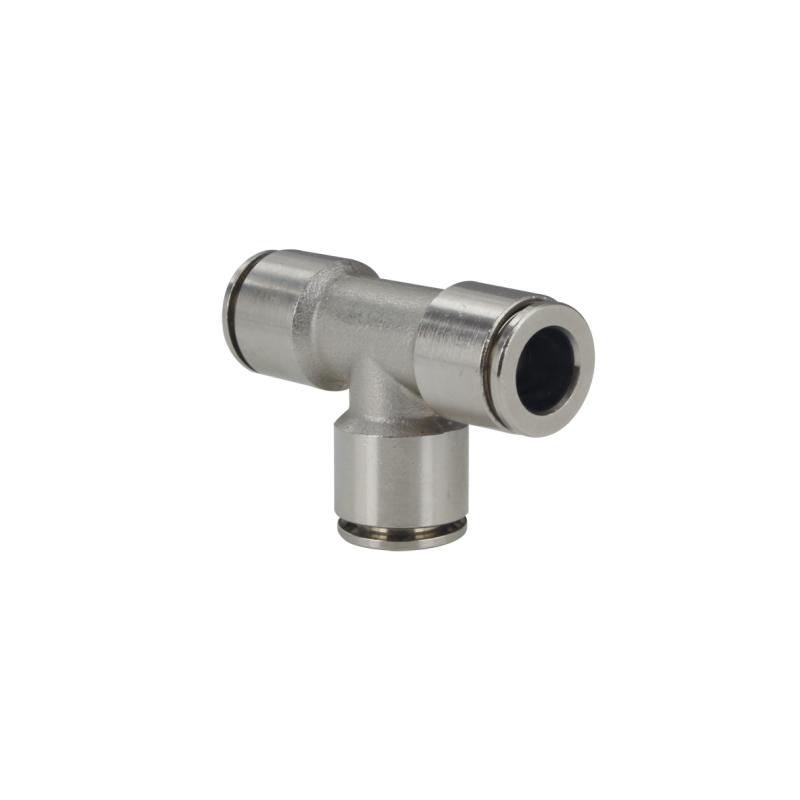

Part Number: A0194030
Description: MA29 08 06
Weight (kg): 0,02753
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: NA
Thread size: NA
Tube size (en): 8
Configuration (en): Tee
Product Family (en): Push-In Fittings

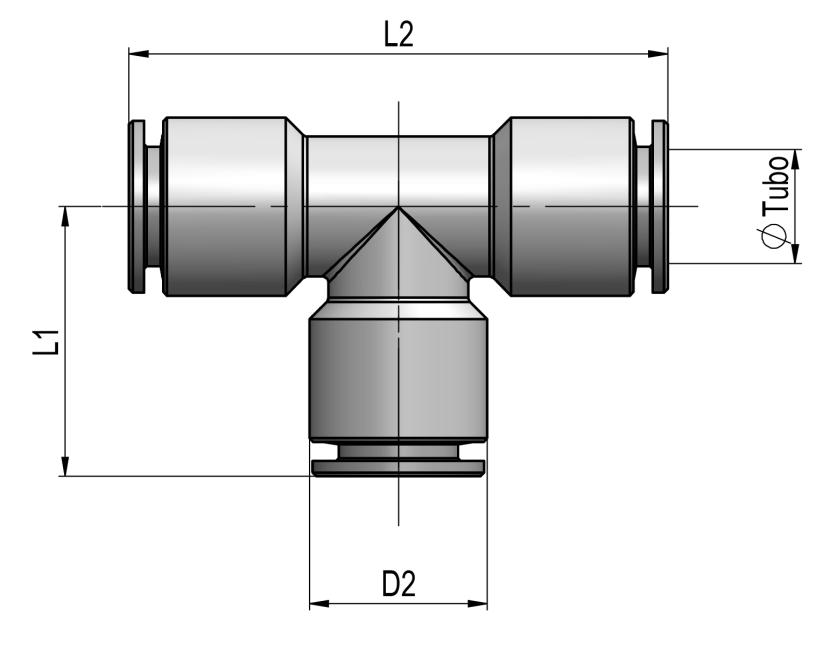

D tube: 8
D tube2: 6
D1: 14
D1 (in): .551
D2: 12
D2 (in): .472
D3: -
D3 (in): -
L1: 20,5
L2: 42
L2 (in): 1.654
L3: -
L3 (in): -
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: -
CH2: -
>
>
