Part Number: A0170000
Description: MA27 03 03
Weight (kg): 0,0145
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: NA
Thread size: NA
Tube size (en): 3
Configuration (en): Straight
Product Family (en): Push-In Fittings

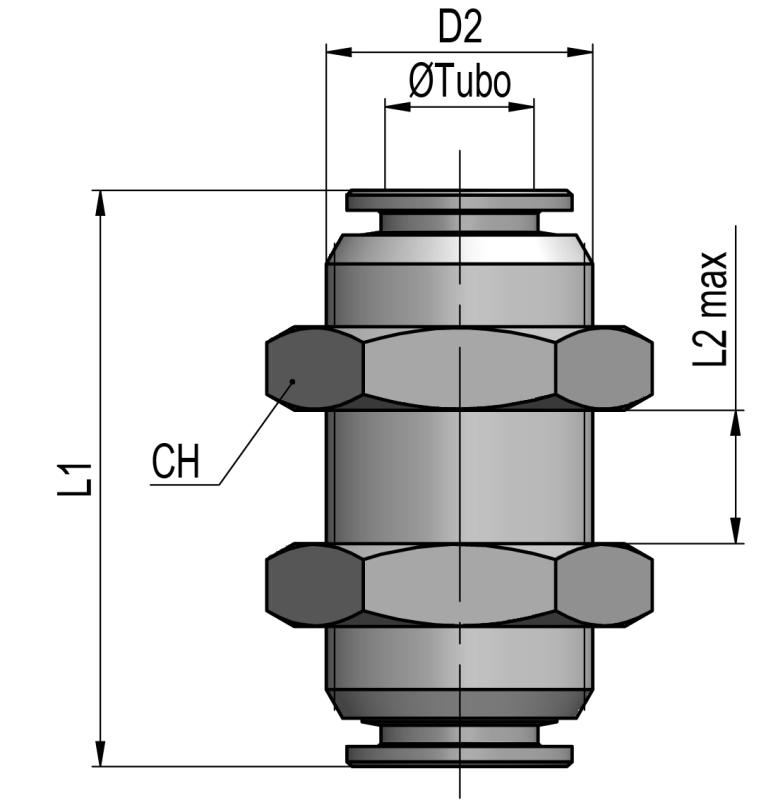

D tube: 3
D tube2: -
D1: -
D1 (in): -
D2: M8x0,75
D2 (in): -
D3: -
D3 (in): -
L1: 21
L2: 8
L2 (in): .315
L3: -
L3 (in): -
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 12
CH2: -
