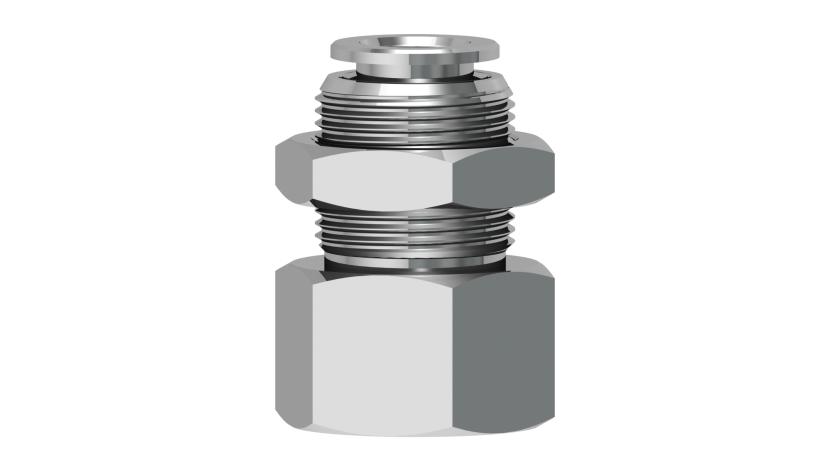

Push in male female bulkhead union - MA27 10 38 F
10 mm - G3/8 - M18x1
4205074

Tube størrelse (mm): 10
Indvendig gevind: 3/8
Udvendig gevind: M18x1
MA27 10 38 F
A0170053-F
MOQ/Box size: 25
Part Number: A0170053-F
Description: MA27 10 38 F
Weight (kg): 0,051765
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G3/8
Tube size (en): 10
Configuration (en): Straight
Product Family (en): Push-In Fittings

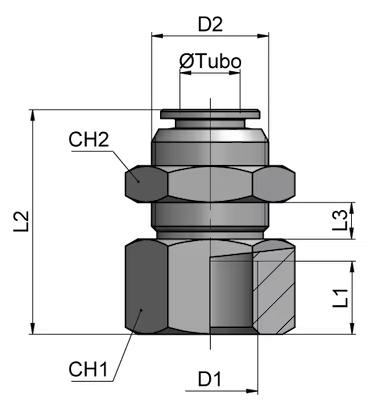

D tube: 10
D tube2: -
D1: G3/8
D1 (in): -
D2: M18x1
D2 (in): -
D3: -
D3 (in): -
L1: 11
L2: 33
L2 (in): 1.299
L3: 10
L3 (in): .394
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 22
CH2: 22
