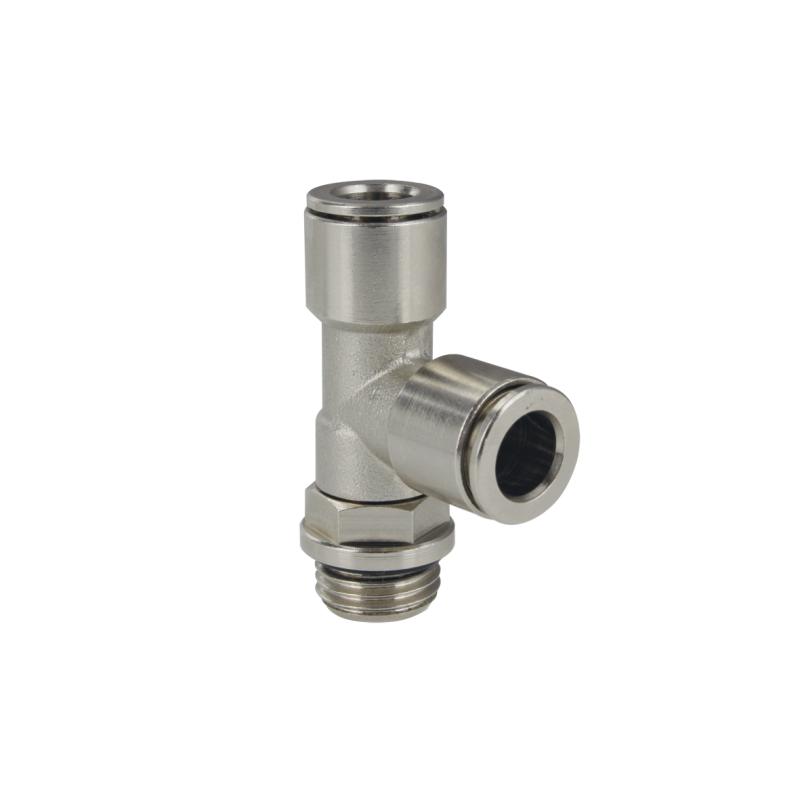

Part Number: A0140063
Description: MA24 12 38
Weight (kg): 0,073
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G3/8
Tube size (en): 12
Configuration (en): Tee
Product Family (en): Push-In Fittings

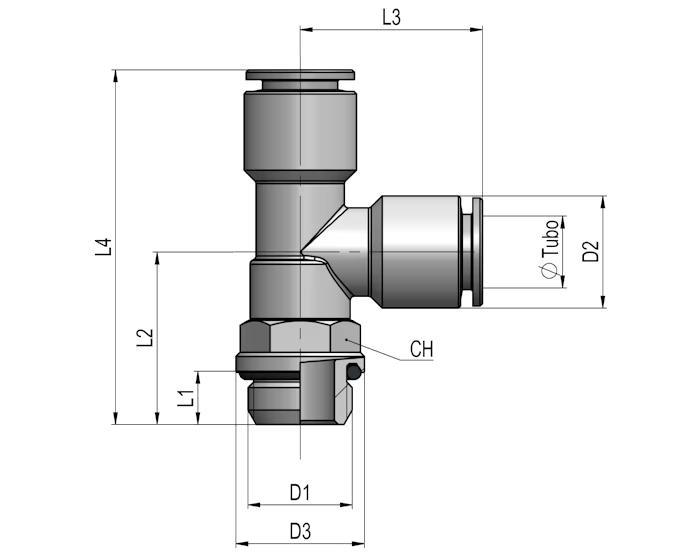

D tube: 12
D tube2: -
D1: G3/8
D1 (in): -
D2: 19
D2 (in): .748
D3: 22,5
D3 (in): .886
L1: 7
L2: 26
L2 (in): 1.024
L3: 28,5
L3 (in): 1.122
L4: 54,5
L4 (in): 2.146
L5: -
L5 (in): -
CH: 20
CH2: -
>
>
