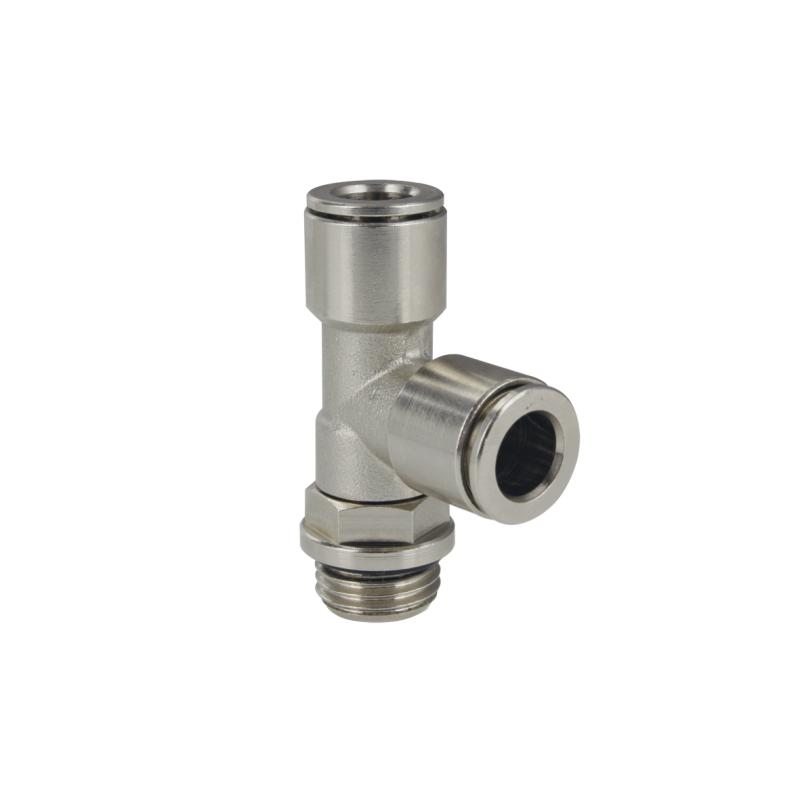

Push in lateral T male SW - MA24 04 18
4 mm - G1/8
4205045

Tube størrelse (mm): 4
Udvendig gevind: 1/8
MA24 04 18
A0140011
MOQ/Box size: 25
Part Number: A0140011
Description: MA24 04 18
Weight (kg): 0,0205
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G1/8
Tube size (en): 4
Configuration (en): Tee
Product Family (en): Push-In Fittings

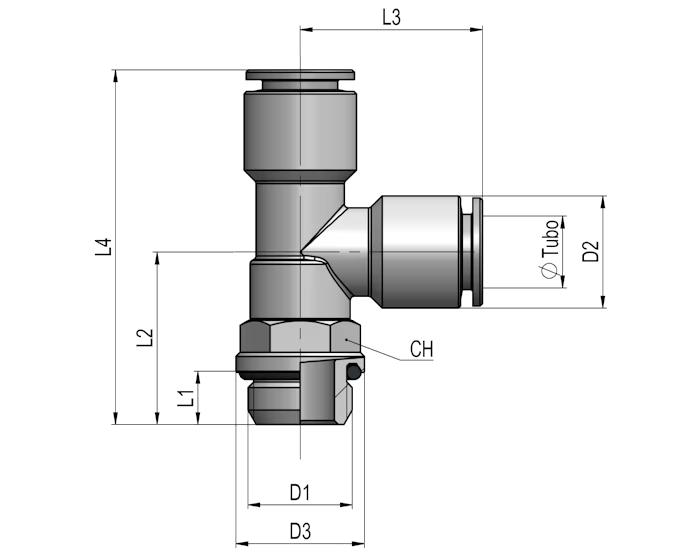

D tube: 4
D tube2: -
D1: G1/8
D1 (in): -
D2: 9,1
D2 (in): .358
D3: 14,5
D3 (in): .571
L1: 5
L2: 18,2
L2 (in): .717
L3: 19,5
L3 (in): .768
L4: 37,7
L4 (in): 1.484
L5: -
L5 (in): -
CH: 13
CH2: -
