Push in Y SW - MA47 08 08
8 mm - 8 mm
4205163

Tube størrelse (mm): 8 - 8
MA47 08 08
A0374040
MOQ/Box size: 10
Part Number: A0374040
Description: MA47 08 08
Weight (kg): 0,042
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: NA
Thread size: NA
Tube size (en): 8
Configuration (en): Y
Product Family (en): Push-In Fittings

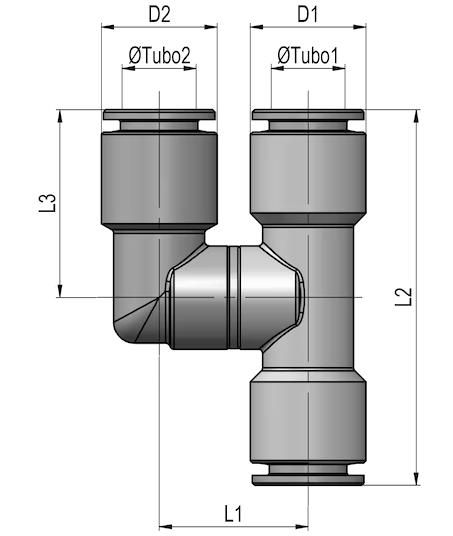

D tube: 8
D tube2: 8
D1: 14
D1 (in): .551
D2: 14
D2 (in): .551
D3: -
D3 (in): -
L1: 18
L2: 45
L2 (in): 1.772
L3: 22,5
L3 (in): .886
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: -
CH2: -
