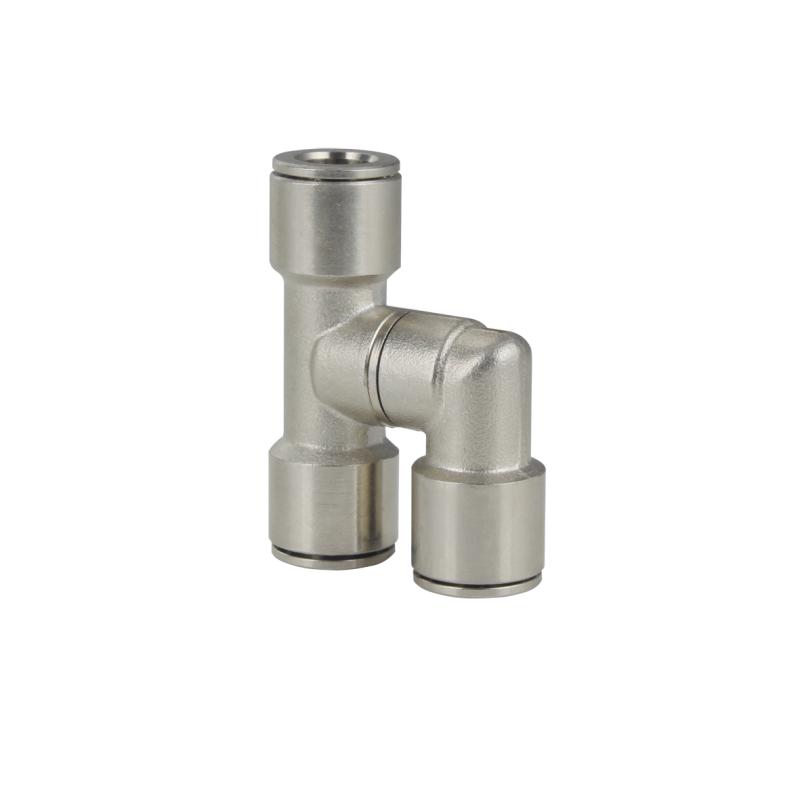

Part Number: A0373030
Description: MA47 06 06
Weight (kg): 0,0345
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: NA
Thread size: NA
Tube size (en): 6
Configuration (en): Y
Product Family (en): Push-In Fittings

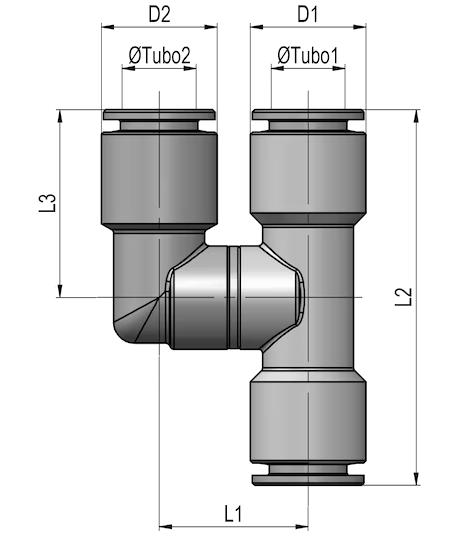

D tube: 6
D tube2: 6
D1: 12
D1 (in): .472
D2: 12
D2 (in): .472
D3: -
D3 (in): -
L1: 18,2
L2: 44
L2 (in): 1.732
L3: 22
L3 (in): .866
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: -
CH2: -
