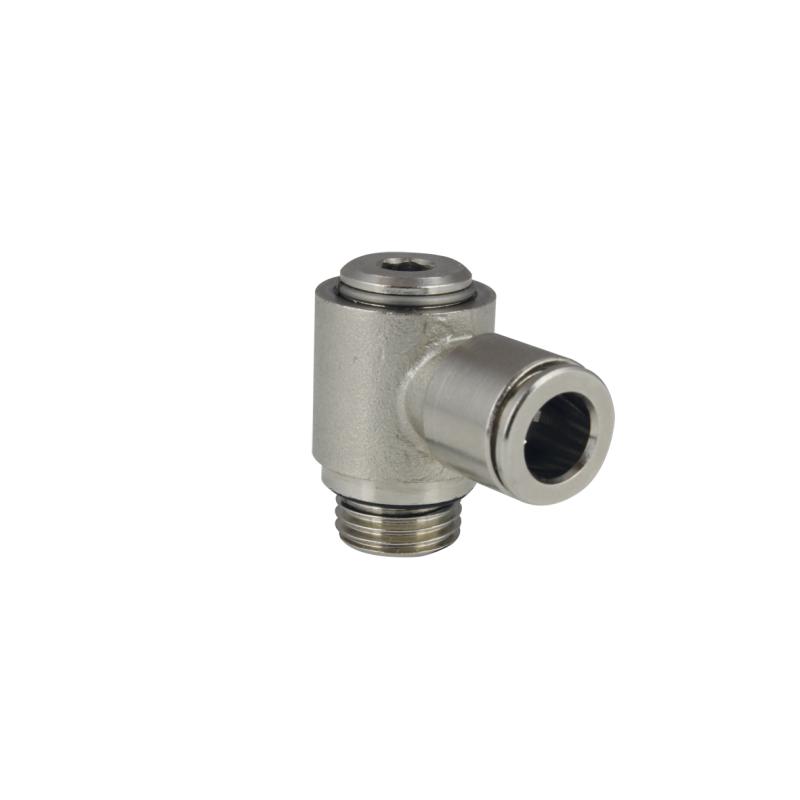

Part Number: A0080A00
Description: MA18 03 M3
Weight (kg): 0,0046
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: METRIC ISO 965-1
Thread size: M3x0,5
Tube size (en): 3
Configuration (en): Elbow
Product Family (en): Push-In Fittings

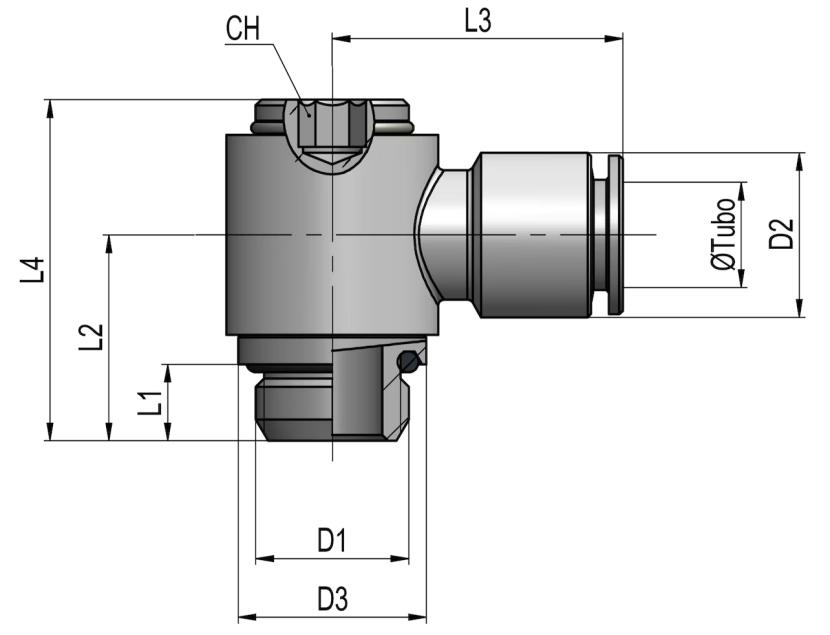

D tube: 3
D tube2: -
D1: M3x0,5
D1 (in): -
D2: 6,8
D2 (in): .268
D3: 7
D3 (in): .276
L1: 3
L2: 8,5
L2 (in): .335
L3: 14
L3 (in): .551
L4: 14
L4 (in): .551
L5: -
L5 (in): -
CH: 2
CH2: -
>
>
