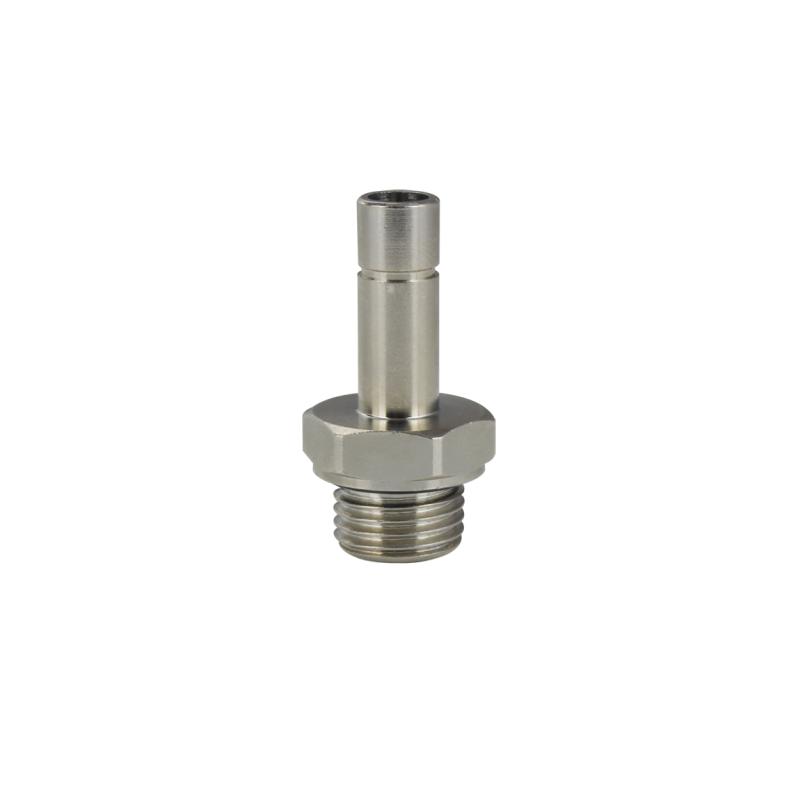

Part Number: A0280012
Description: MA38 04 14
Weight (kg): 0,0124
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G1/4
Tube size (en): 4
Configuration (en): Other
Product Family (en): Push-In Fittings

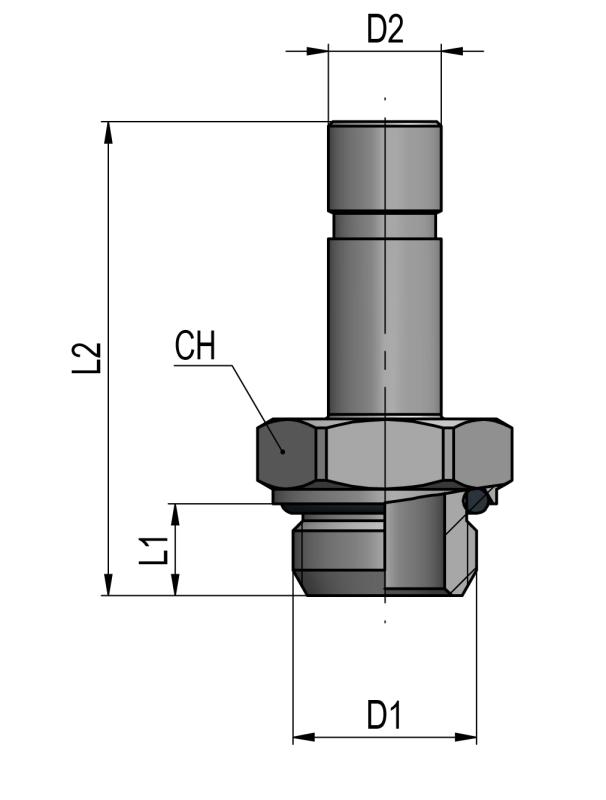

D tube: -
D tube2: -
D1: G1/4
D1 (in): -
D2: 4
D2 (in): .157
D3: -
D3 (in): -
L1: 6,5
L2: 29,5
L2 (in): 1.161
L3: -
L3 (in): -
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 16
CH2: -
