Part Number: A0110041
Description: MA21 08 18
Weight (kg): 0,0307
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G1/8
Tube size (en): 8

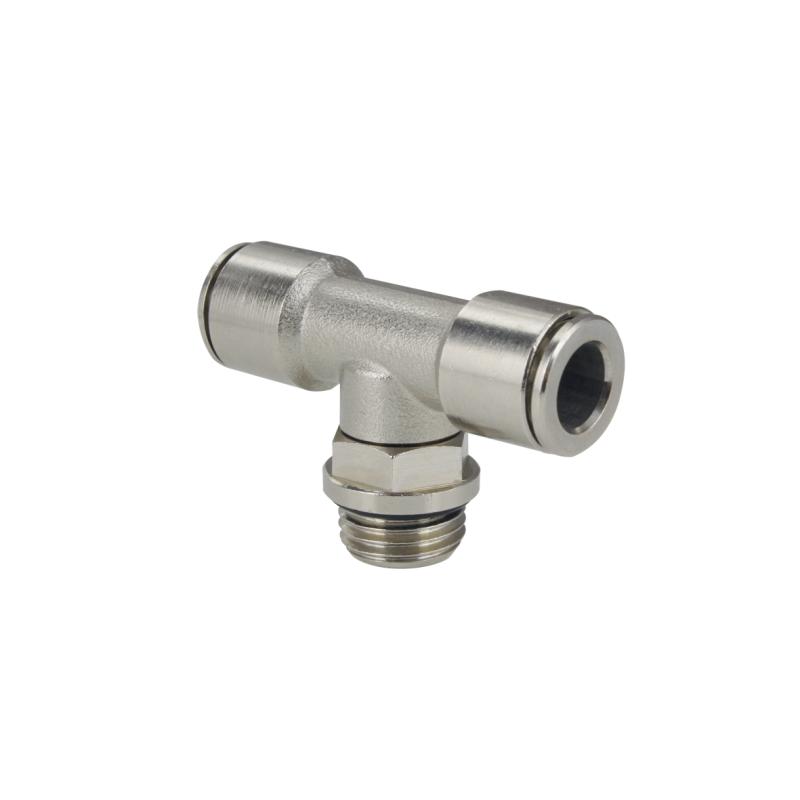

Configuration (en): Tee
Product Family (en): Push-In Fittings
D tube: 8
D tube2: -
D1: G1/8
D1 (in): -
D2: 14
D2 (in): .551
D3: 14,5
D3 (in): .571
L1: 5
L2: 18
L2 (in): .709
L3: 45
L3 (in): 1.772
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 13
CH2: -
>
>
