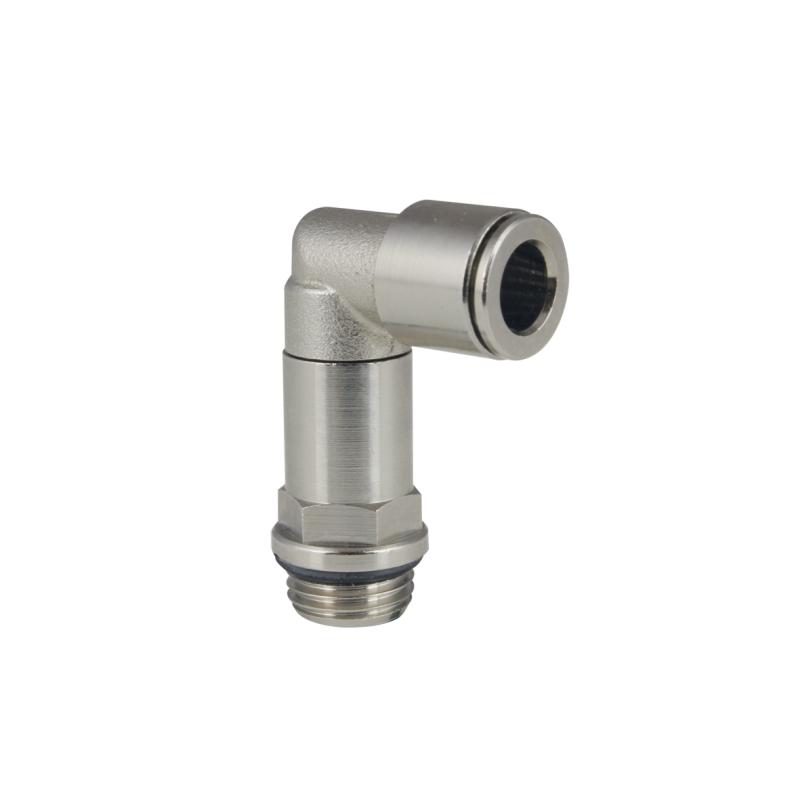

Part Number: A0090031
Description: MA19 06 18
Weight (kg): 0,0305
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G1/8
Tube size (en): 6
Configuration (en): Elbow
Product Family (en): Push-In Fittings

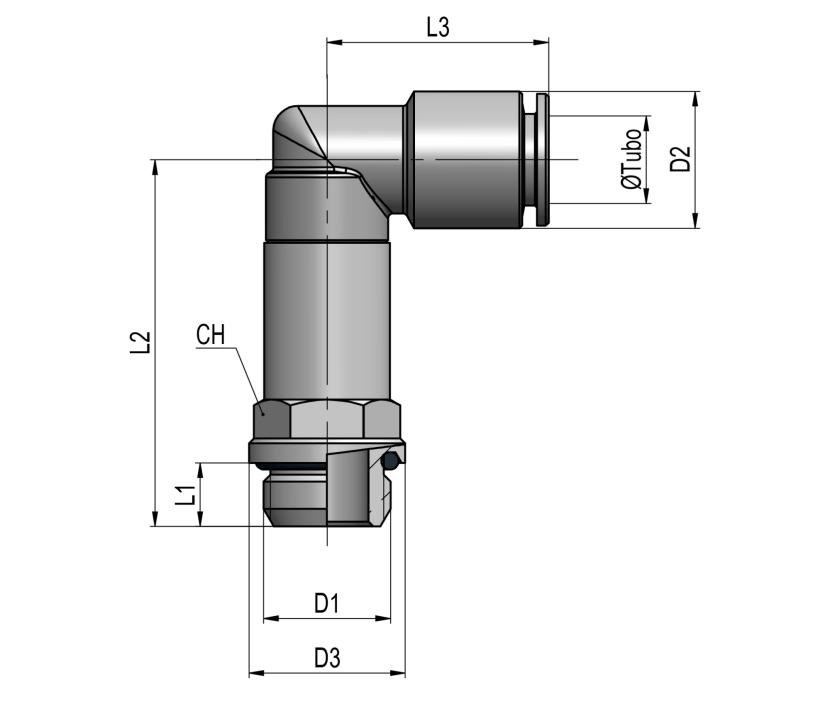

D tube: 6
D tube2: -
D1: G1/8
D1 (in): -
D2: 12
D2 (in): .472
D3: 14,5
D3 (in): .571
L1: 5
L2: 32,2
L2 (in): 1.268
L3: 22
L3 (in): .866
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 13
CH2: -
>
>
