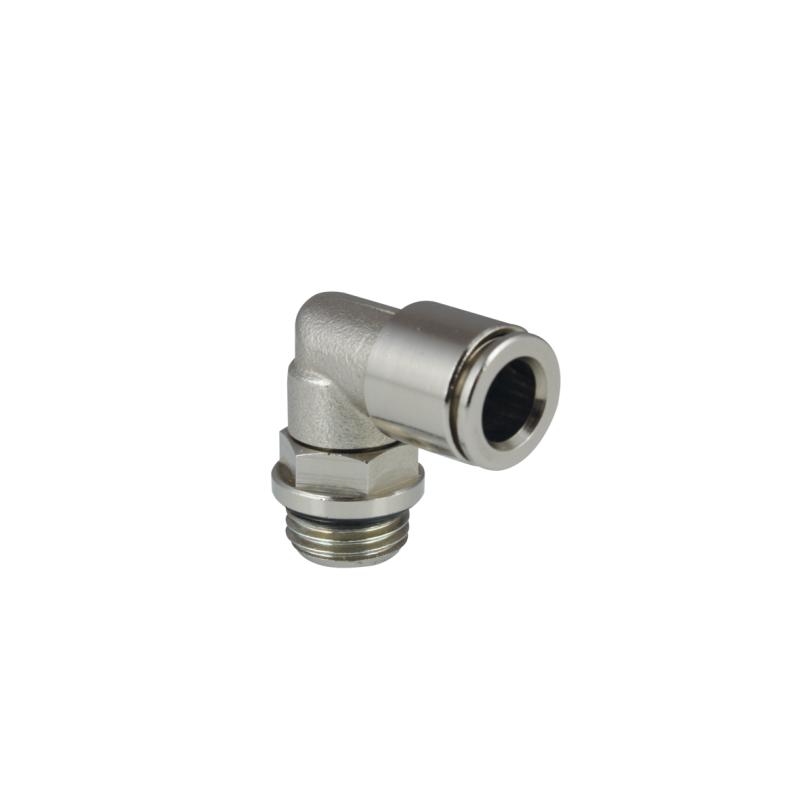

Part Number: A0060330
Description: MA16 06 M12x1,25
Weight (kg): 0,022
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: METRIC ISO 965-1
Thread size: M12x1,25
Tube size (en): 6
Configuration (en): Elbow
Product Family (en): Push-In Fittings

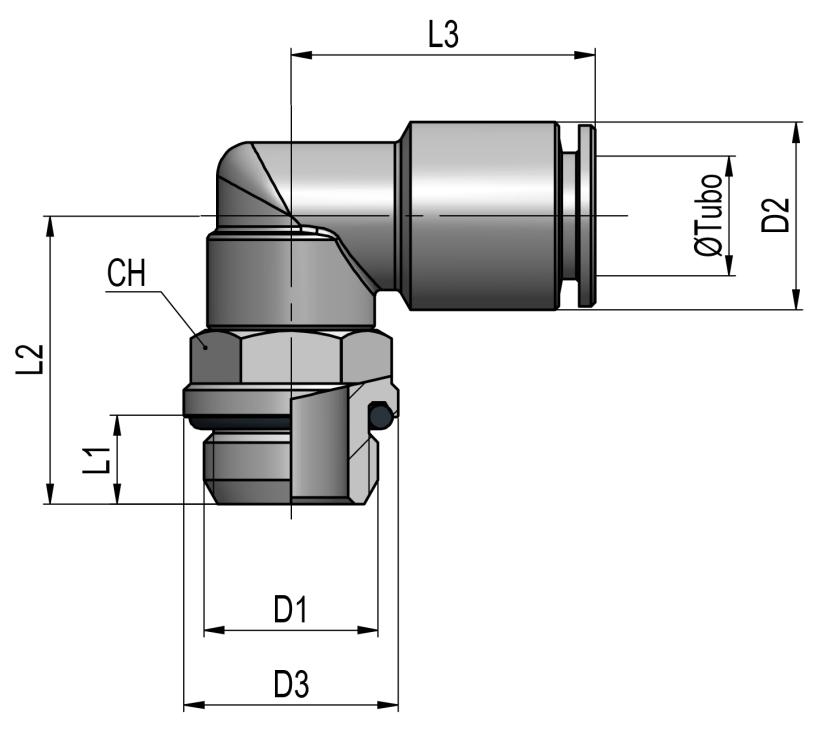

D tube: 6
D tube2: -
D1: M12x1,25
D1 (in): -
D2: 12
D2 (in): .472
D3: 15
D3 (in): .591
L1: 6,5
L2: 21,7
L2 (in): .854
L3: 22
L3 (in): .866
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 13
CH2: -
>
>
