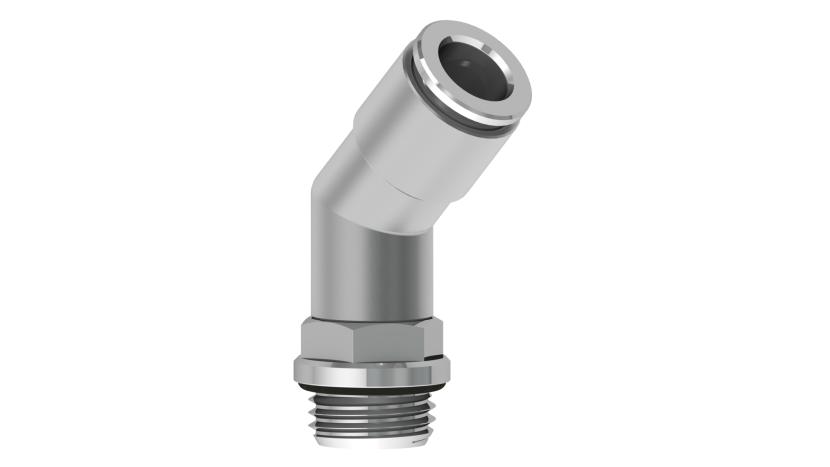

Part Number: A0060064-45
Description: MA16 12 12 45°
Weight (kg): 0,07631
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G1/2
Tube size (en): 12
Configuration (en): Elbow
Product Family (en): Push-In Fittings

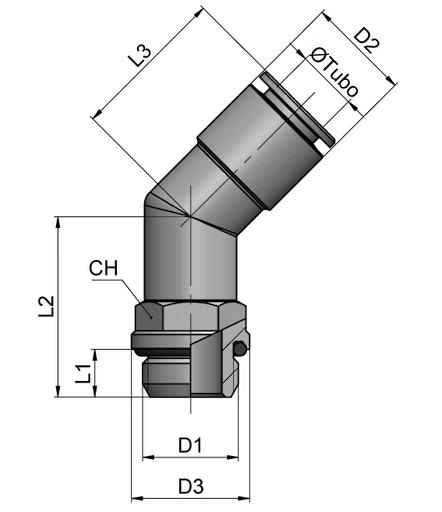

D tube: 12
D tube2: -
D1: G1/2
D1 (in): -
D2: 20
D2 (in): .787
D3: 25
D3 (in): .984
L1: 8,5
L2: 30,5
L2 (in): 1.201
L3: 25
L3 (in): .984
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 20
CH2: -
>
>
