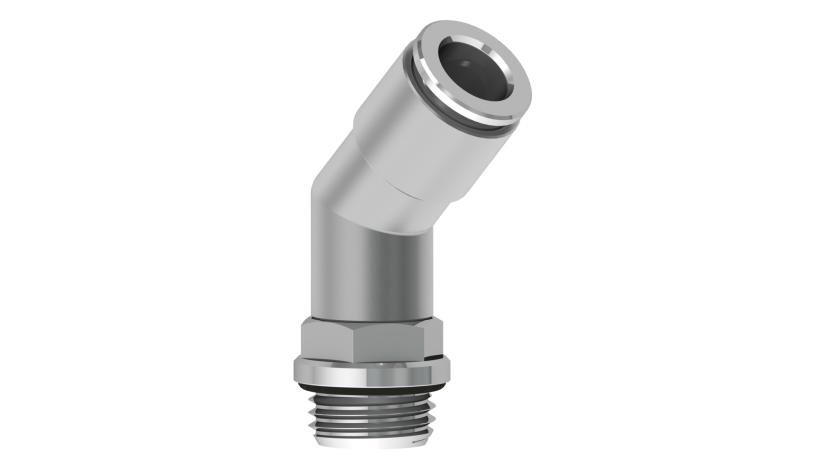

Part Number: A0060052-45
Description: MA16 10 14 45°
Weight (kg): 0,04052
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G1/4
Tube size (en): 10
Configuration (en): Elbow
Product Family (en): Push-In Fittings

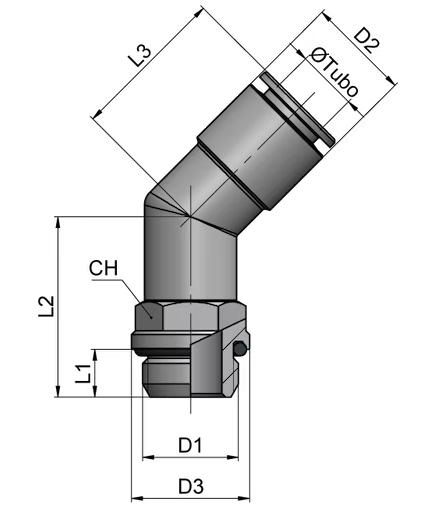

D tube: 10
D tube2: -
D1: G1/4
D1 (in): -
D2: 16
D2 (in): .630
D3: 16
D3 (in): .630
L1: 6,5
L2: 23
L2 (in): .906
L3: 25
L3 (in): .984
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 13
CH2: -
>
>
