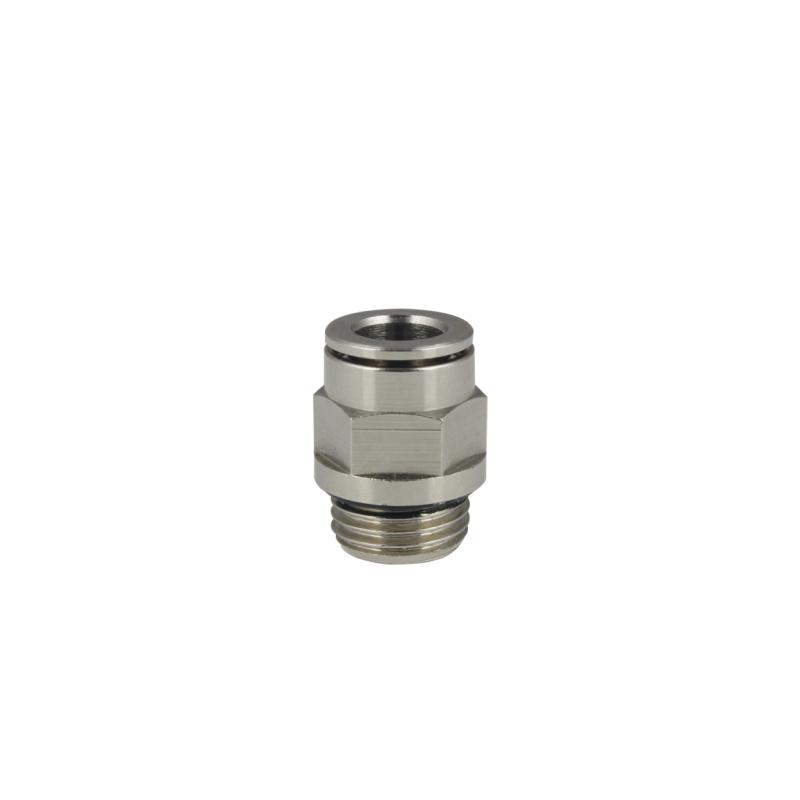

Part Number: A0020095
Description: MA12 16 34
Weight (kg): 0,0682
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G3/4
Tube size (en): 16
Configuration (en): Straight
Product Family (en): Push-In Fittings

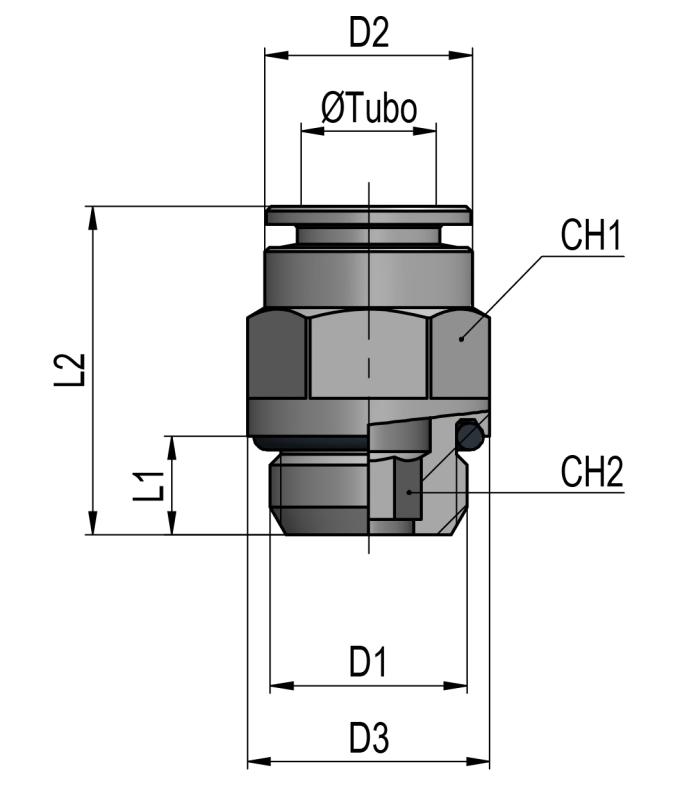

D tube: 16
D tube2: -
D1: G3/4
D1 (in): -
D2: 23,7
D2 (in): .933
D3: 32
D3 (in): 1.260
L1: 9,5
L2: 32
L2 (in): 1.260
L3: -
L3 (in): -
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 24
CH2: 13
>
>
