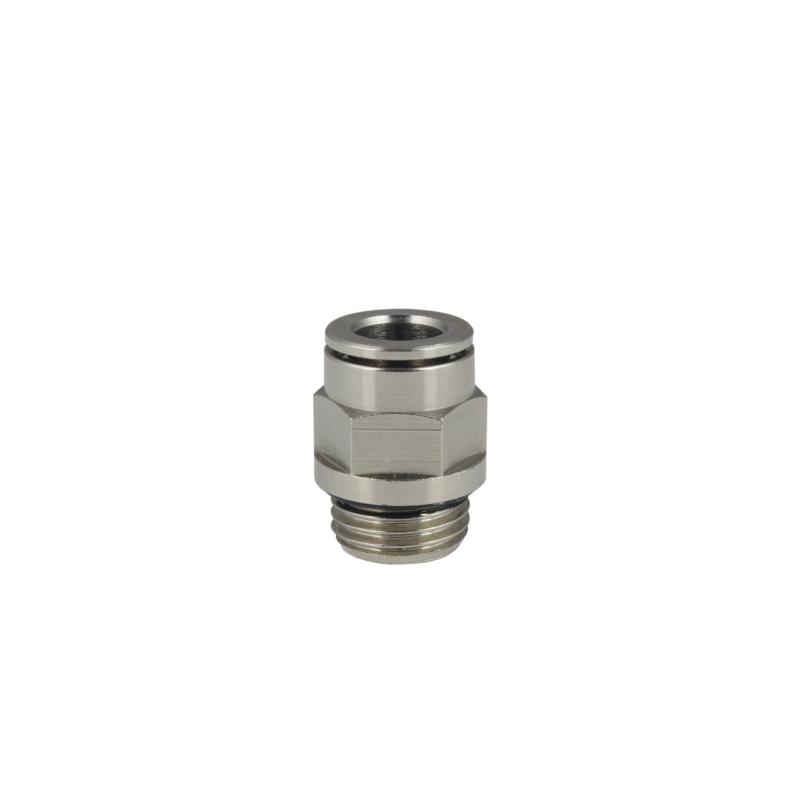

Part Number: A0020051
Description: MA12 10 18
Weight (kg): 0,0168
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G1/8
Tube size (en): 10
Configuration (en): Straight
Product Family (en): Push-In Fittings

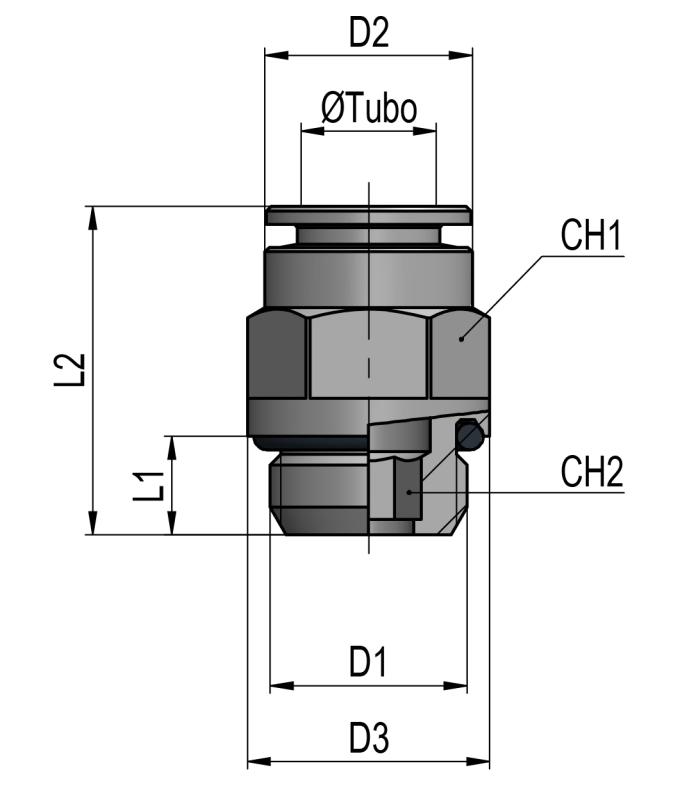

D tube: 10
D tube2: -
D1: G1/8
D1 (in): -
D2: 15,9
D2 (in): .626
D3: 13
D3 (in): .512
L1: 5
L2: 26,5
L2 (in): 1.043
L3: -
L3 (in): -
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 15
CH2: 8
>
>
