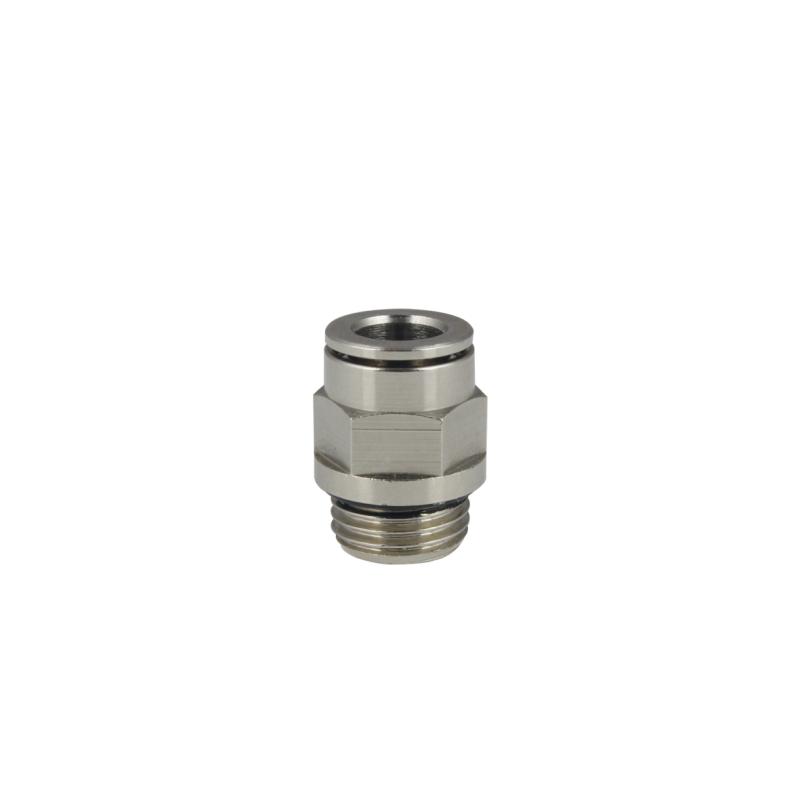

Part Number: A0020330
Description: MA12 06 M12x1,25
Weight (kg): 0,0115
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: METRIC ISO 965-1
Thread size: M12x1,25
Tube size (en): 6
Configuration (en): Straight
Product Family (en): Push-In Fittings

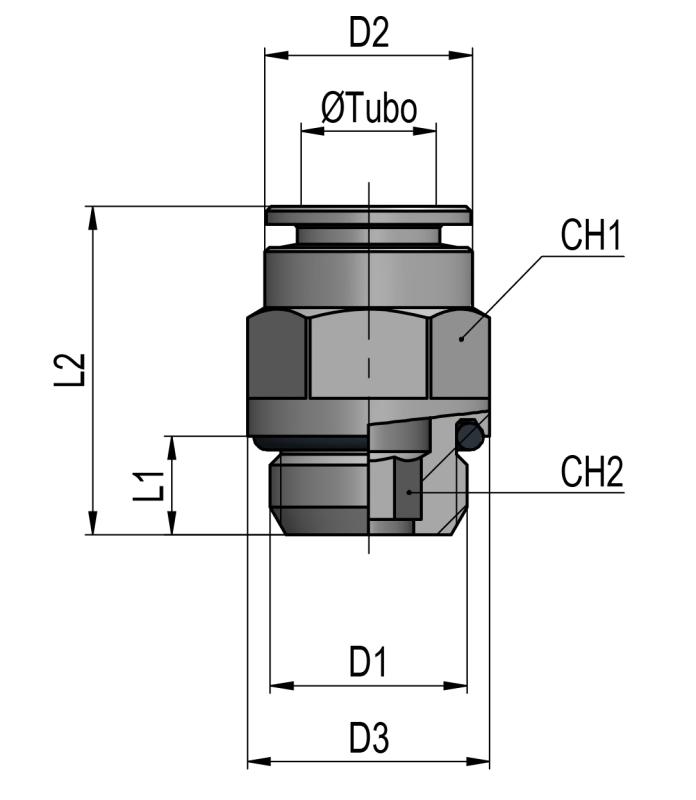

D tube: 6
D tube2: -
D1: M12x1,25
D1 (in): -
D2: 11,9
D2 (in): .469
D3: 15
D3 (in): .591
L1: 6,5
L2: 21
L2 (in): .827
L3: -
L3 (in): -
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 12
CH2: 4
>
>
