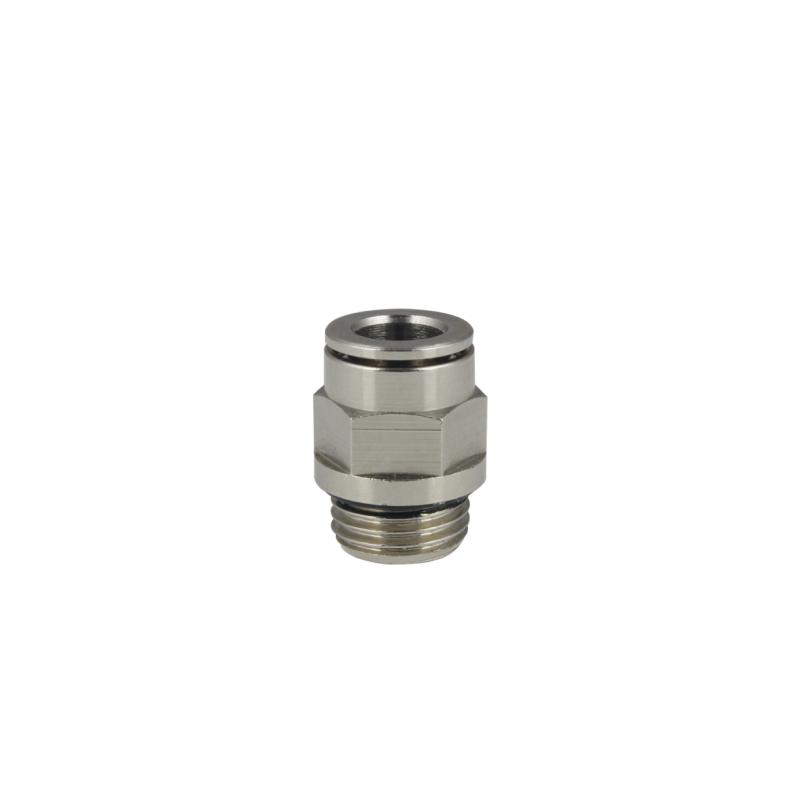

Part Number: A0020110
Description: MA12 04 M6
Weight (kg): 0,0043
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: METRIC ISO 965-1
Thread size: M6x1
Tube size (en): 4
Configuration (en): Straight
Product Family (en): Push-In Fittings

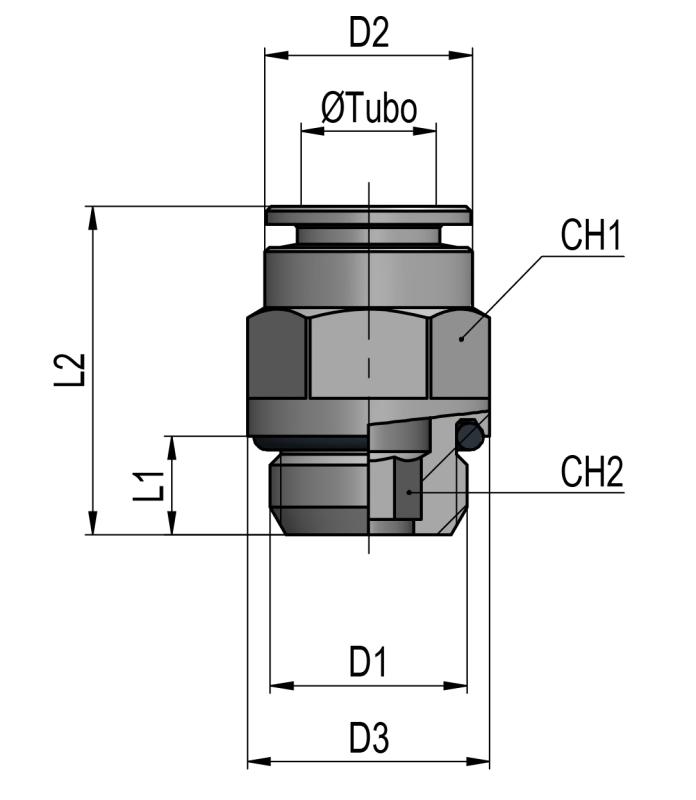

D tube: 4
D tube2: -
D1: M6x1
D1 (in): -
D2: 9
D2 (in): .354
D3: 9
D3 (in): .354
L1: 4,5
L2: 19,5
L2 (in): .768
L3: -
L3 (in): -
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: -
CH2: 3
>
>
