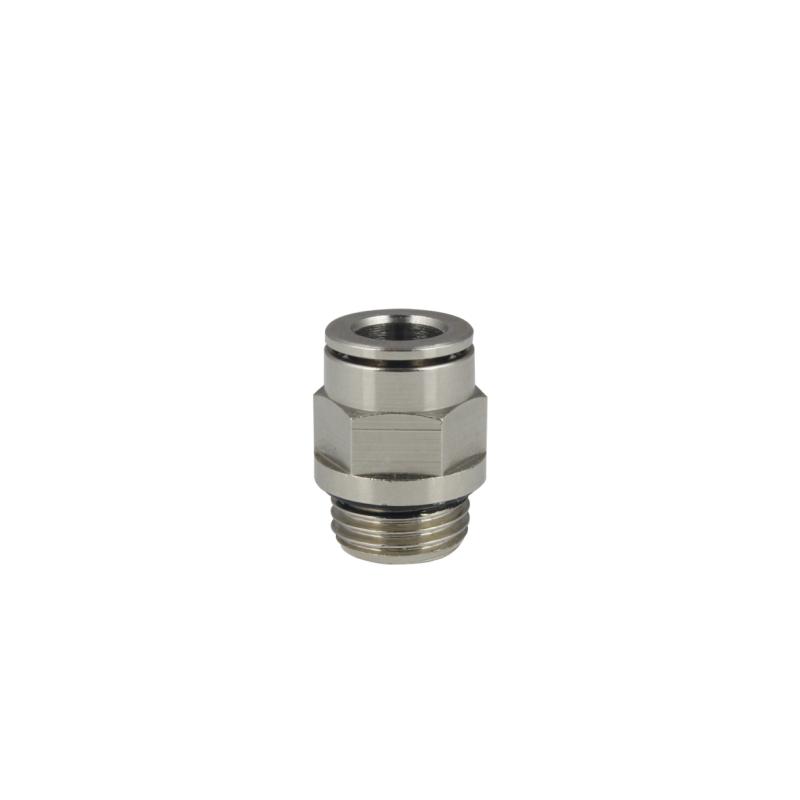

Part Number: A0020A00
Description: MA12 03 M3
Weight (kg): 0,0014
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: METRIC ISO 965-1
Thread size: M3x0,5
Tube size (en): 3
Configuration (en): Straight
Product Family (en): Push-In Fittings

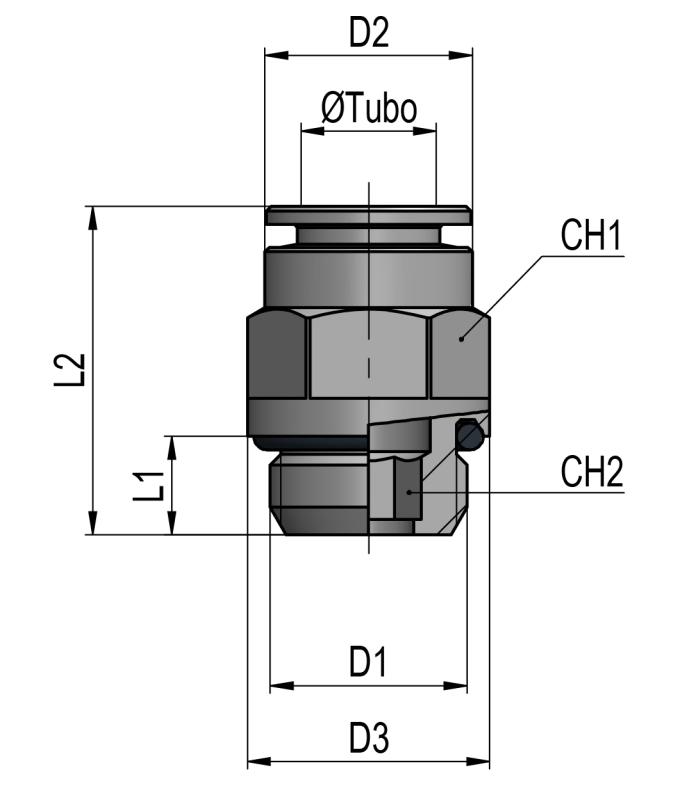

D tube: 3
D tube2: -
D1: M3x0,5
D1 (in): -
D2: 6,5
D2 (in): .256
D3: 5,6
D3 (in): .220
L1: 3
L2: 15,5
L2 (in): .610
L3: -
L3 (in): -
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: -
CH2: 1,5
>
>
