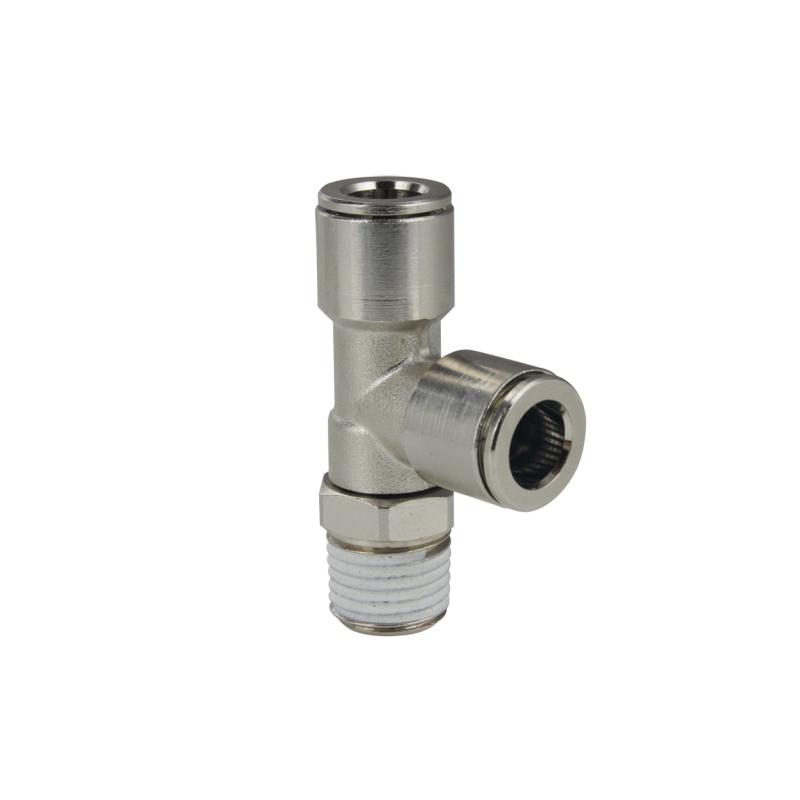

Push in lateral T taper male SW - MA23 04 14 PTFE
4 mm - R1/4
4205044

Tube størrelse (mm): 4
Udvendig gevind: 1/4
MA23 04 14 PTFE
A0130012-PTFE
MOQ/Box size: 25
Part Number: A0130012-PTFE
Description: MA23 04 14 PTFE
Weight (kg): 0,0255
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN 10226-1
Thread size: R1/4
Tube size (en): 4
Configuration (en): Tee
Product Family (en): Push-In Fittings

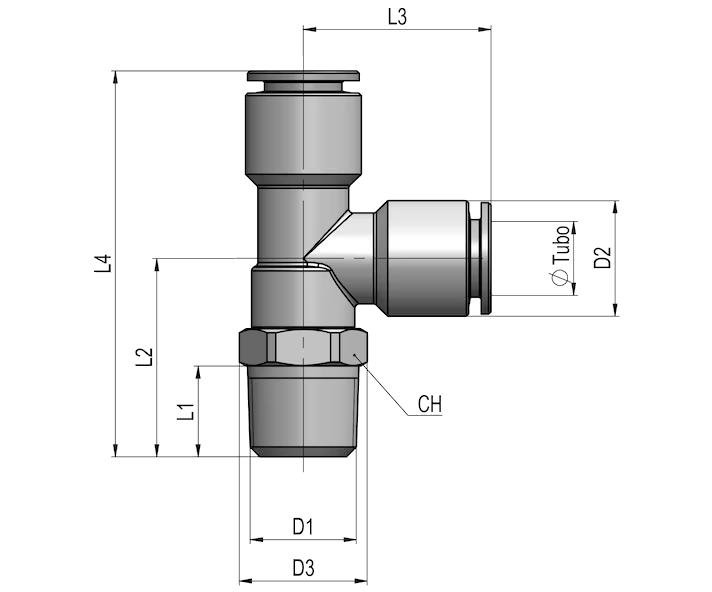

D tube: 4
D tube2: -
D1: R1/4
D1 (in): -
D2: 9,1
D2 (in): .358
D3: 15,5
D3 (in): .610
L1: 11
L2: 24,2
L2 (in): .953
L3: 19,5
L3 (in): .768
L4: 43,7
L4 (in): 1.720
L5: -
L5 (in): -
CH: 14
CH2: -
