Medium Pressure Push-in Fittings, 80 bar

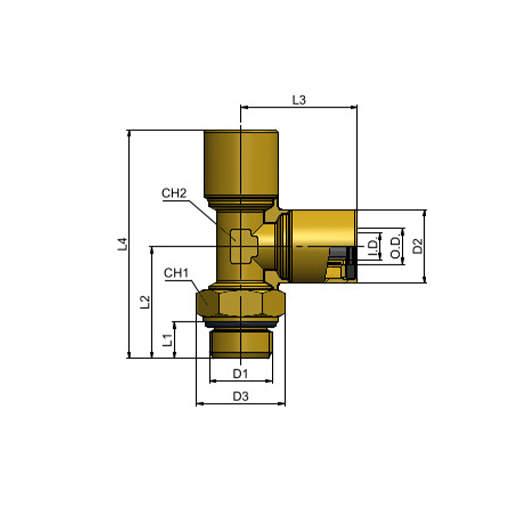

| CODE | TYPE | MAT | D1 | WT | WP | AF | D2 | D3 | CH1 | CH2 | G | L1 | L2 | L3 | L4 | TUBOID | TUBOOD | WPP | WTF | CERTIFICATION 1 | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
| T014023O | MT24 06 M10x1 | Brass | M10x1 | -50/+100 °C | 0/16 bar | --- | 14,5 | 16,2 | 14 | 9 | 37,3 | 6,3 | 19,5 | 25 | 44,5 | 4 | 6 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T014024O | MT24 08 M10x1 | Brass | M10x1 | -50/+100 °C | 0/16 bar | --- | 16,5 | 16,2 | 14 | 11 | 45,3 | 6,3 | 20,5 | 26 | 46,5 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q3P | MT24 06 M12x1,5 | Brass | M12x1,5 | -50/+100 °C | 0/16 bar | --- | 14,5 | 17,3 | 15 | 9 | --- | 8,3 | 23,5 | 25 | 48,5 | 4 | 6 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q3Q | MT24 06 M14x1,5 | Brass | M14x1,5 | -50/+100 °C | 0/16 bar | --- | 14,5 | 19,6 | 17 | 9 | --- | 8,3 | 23,5 | 25 | 48,5 | 4 | 6 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q3S | MT24 06 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 14,5 | 22 | 19 | 11 | 56,5 | 8,3 | 24 | 26 | 50 | 4 | 6 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q4P | MT24 08 M12x1,5 | Brass | M12x1,5 | -50/+100 °C | 0/16 bar | --- | 16,5 | 17,3 | 15 | 11 | 49,2 | 8,3 | 24,5 | 26 | 50,5 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q4Q | MT24 08 M14x1,5 | Brass | M14x1,5 | -50/+100 °C | 0/16 bar | --- | 16,5 | 19,6 | 17 | 11 | 53,5 | 8,3 | 25 | 26 | 51 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q4S | MT24 08 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 16,5 | 22 | 19 | 11 | 42,7 | 8,3 | 24,5 | 26 | 50,5 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q4U | MT24 08 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 18,5 | 31,2 | 27 | 15 | --- | 8,1 | 26,5 | 26 | 52,5 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q5P | MT24 10 M12x1,5 | Brass | M12x1,5 | -50/+100 °C | 0/16 bar | --- | 18,5 | 17,3 | 15 | 13 | --- | 8,3 | 25,5 | 29,3 | 54,8 | 8 | 10 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q5Q | MT24 10 M14x1,5 | Brass | M14x1,5 | -50/+100 °C | 0/16 bar | --- | 18,5 | 19,6 | 17 | 13 | --- | 8,3 | 26 | 29,3 | 55,3 | 8 | 10 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q5S | MT24 10 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 18,5 | 22 | 19 | 13 | 27,8 | 8,3 | 26 | 29,3 | 55,3 | 8 | 10 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q5U | MT24 10 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 18,5 | 31,2 | 27 | 15 | --- | 8,1 | 26,5 | 30,3 | 56,8 | 8 | 10 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q6P | MT24 12 M12x1,5 | Brass | M12x1,5 | -50/+100 °C | 0/16 bar | --- | 21 | 17,3 | 15 | 15 | 81,8 | 8,3 | 26,7 | 31 | 57,7 | 9 | 12 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q6Q | MT24 12 M14x1,5 | Brass | M14x1,5 | -50/+100 °C | 0/16 bar | --- | 21 | 19,6 | 17 | 15 | 83,8 | 8,3 | 26,7 | 31 | 57,7 | 9 | 12 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q6S | MT24 12 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 21 | 22 | 19 | 15 | 89,2 | 8,3 | 27,3 | 31 | 58,3 | 9 | 12 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q6U | MT24 12 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 21 | 31,2 | 27 | 15 | --- | 8,1 | 27,6 | 31 | 58,6 | 9 | 12 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q8S | MT24 15 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 27 | 22 | 19 | 19 | --- | 8,3 | 30,2 | 37 | 67,2 | 12 | 15 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q8U | MT24 15 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 27 | 31,2 | 27 | 19 | --- | 8,1 | 30,5 | 37 | 67,5 | 12 | 15 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q9S | MT24 16 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 27 | 22 | 19 | 19 | --- | 8,3 | 30,2 | 37,5 | 67,7 | 12 | 16 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140Q9U | MT24 16 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 27 | 31,2 | 27 | 19 | --- | 8,1 | 30,5 | 37,5 | 68 | 12 | 16 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| T0140QEU | MT24 18 M22x1,5 | Brass | M22x1,5 | -50/+100 °C | 0/16 bar | --- | 29 | 31,2 | 27 | 21 | --- | 8,1 | 32,5 | 39 | 71,5 | 14 | 18 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
