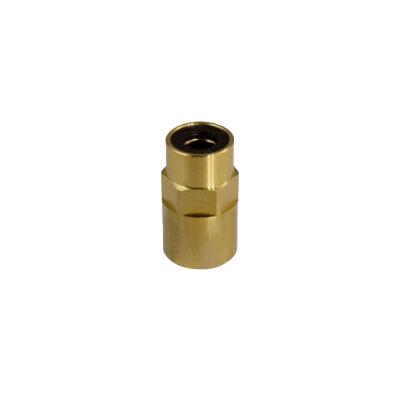

Medium Pressure Push-in Fittings, 80 bar

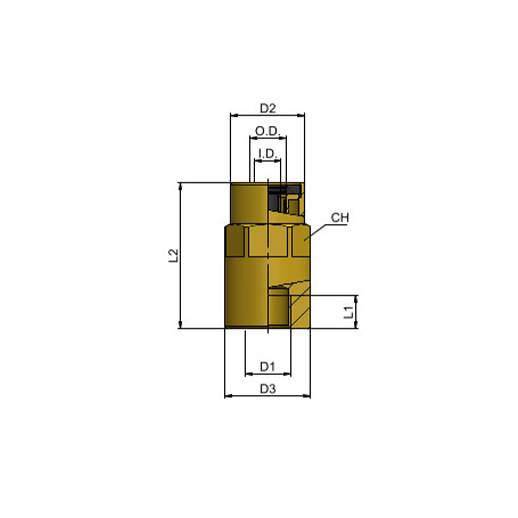

| TYPE | MAT | D1 | WT | WP | AF | D2 | D3 | CH | G | L1 | L2 | TUBOID | TUBOOD | WPP | WTF | CERTIFICATION 1 | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
| MT13 06 M10x1 | Brass | M10x1 | -50/+100 °C | 0/16 bar | --- | 14,5 | 17 | 15 | 36,3 | 7,5 | 32,5 | 4 | 6 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT13 08 M10x1 | Brass | M10x1 | -50/+100 °C | 0/16 bar | --- | 16,5 | 19 | 17 | 45,3 | 7,5 | 32,5 | 6 | 8 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
| MT13 06 M16x1,5 | Brass | M16x1,5 | -50/+100 °C | 0/16 bar | --- | 14,5 | 20 | 15 | 45,2 | 10 | 37 | 4 | 6 | 0/232 psi | -58/212 °F | TUV | SILICONE FREE | RoHS | REACH |
