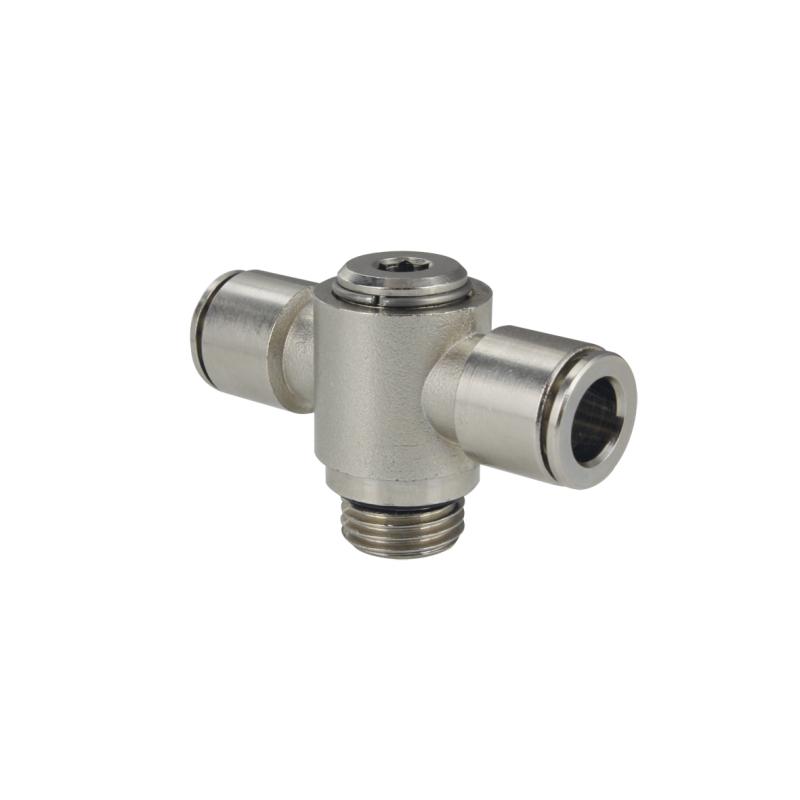

Push in banjo T parallel male SW - MA22 12 12
12 mm - G1/2
4205042

Tube størrelse (mm): 12
Udvendig gevind: 1/2
MA22 12 12
A0120064
MOQ/Box size: 10
Part Number: A0120064
Description: MA22 12 12
Weight (kg): 0,1247
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G1/2
Tube size (en): 12
Configuration (en): Tee
Product Family (en): Push-In Fittings
D tube: 12
D tube2: -
D1: G1/2
D1 (in): -
D2: 19
D2 (in): .748
D3: 27
D3 (in): 1.063
L1: 8,5
L2: 24
L2 (in): .945
L3: 63
L3 (in): 2.480
L4: 39,6
L4 (in): 1.559
L5: -
L5 (in): -
CH: 8
CH2: -
