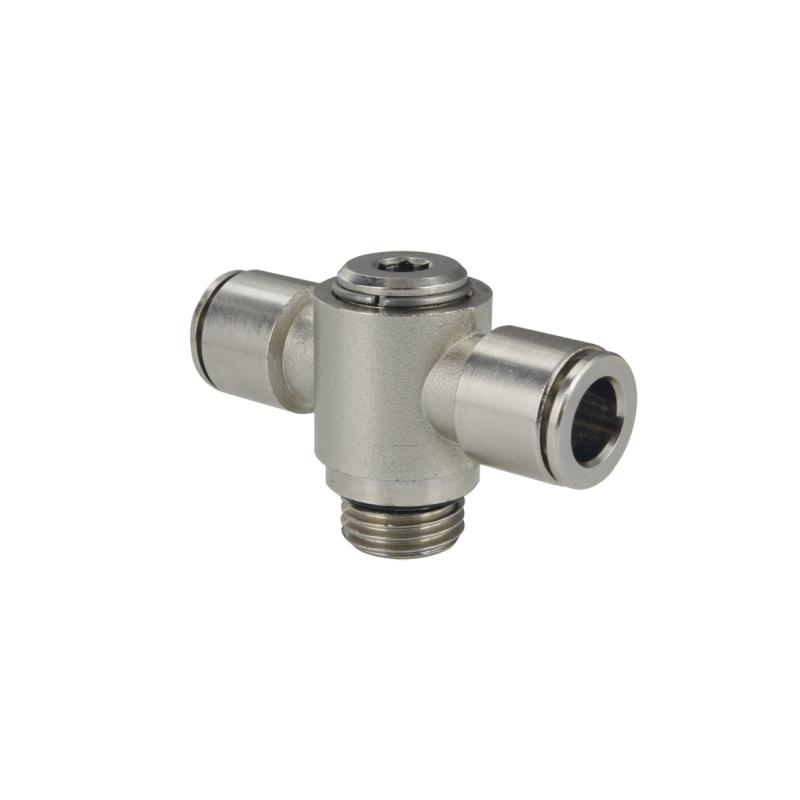

Push in banjo T parallel male SW - MA22 06 14
6 mm - G1/4
4205036

Tube størrelse (mm): 6
Udvendig gevind: 1/4
MA22 06 14
A0120032
MOQ/Box size: 25
Part Number: A0120032
Description: MA22 06 14
Weight (kg): 0,0458
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G1/4
Tube size (en): 6
Configuration (en): Tee
Product Family (en): Push-In Fittings

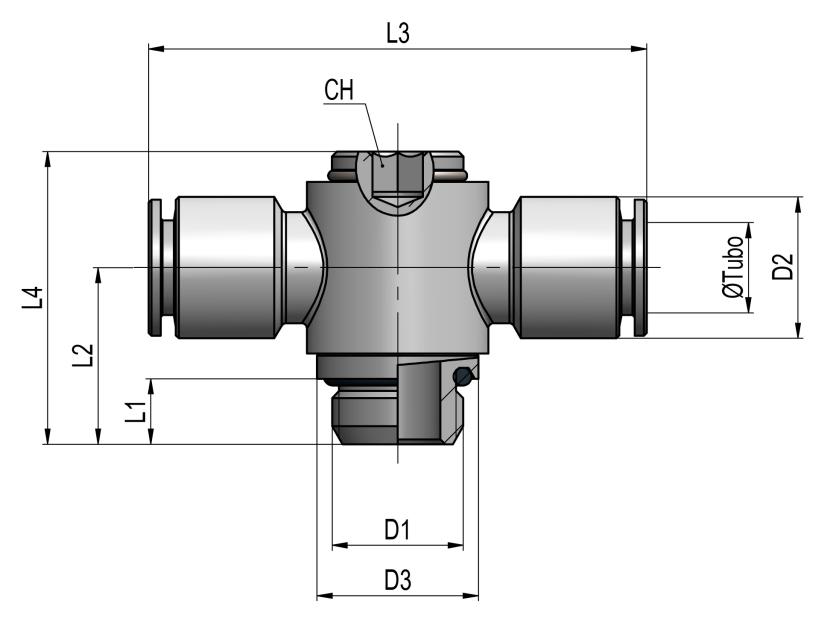

D tube: 6
D tube2: -
D1: G1/4
D1 (in): -
D2: 12
D2 (in): .472
D3: 18
D3 (in): .709
L1: 6,5
L2: 17,5
L2 (in): .689
L3: 48
L3 (in): 1.890
L4: 29
L4 (in): 1.142
L5: -
L5 (in): -
CH: 5
CH2: -
