Part Number: A0120010
Description: MA22 04 M5
Weight (kg): 0,0138
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: METRIC ISO 965-1
Thread size: M5x0,8
Tube size (en): 4
Configuration (en): Tee
Product Family (en): Push-In Fittings

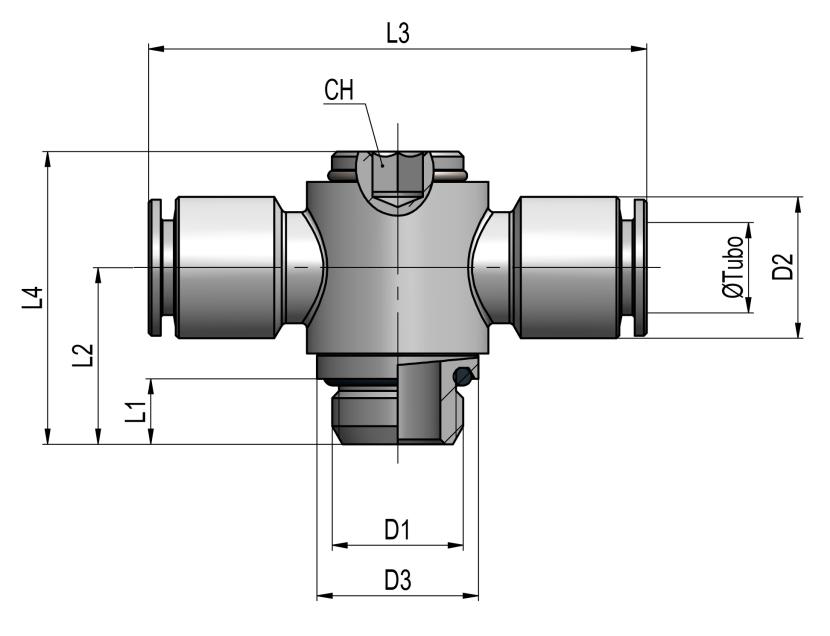

D tube: 4
D tube2: -
D1: M5x0,8
D1 (in): -
D2: 9
D2 (in): .354
D3: 10
D3 (in): .394
L1: 4
L2: 11
L2 (in): .433
L3: 38
L3 (in): 1.496
L4: 19,1
L4 (in): .752
L5: -
L5 (in): -
CH: 3
CH2: -
>
>
