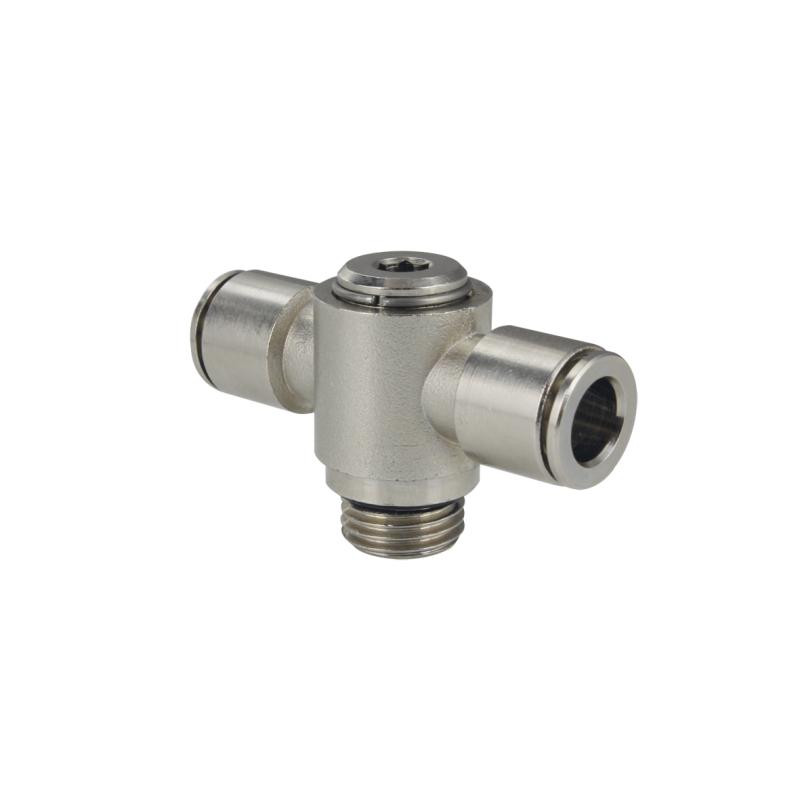

Push in banjo T parallel male SW - MA22 04 18
4 mm - G1/8
4205033

Tube størrelse (mm): 4
Udvendig gevind: 1/8
MA22 04 18
A0120011
MOQ/Box size: 25
Part Number: A0120011
Description: MA22 04 18
Weight (kg): 0,0274
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G1/8
Tube size (en): 4
Configuration (en): Tee
Product Family (en): Push-In Fittings

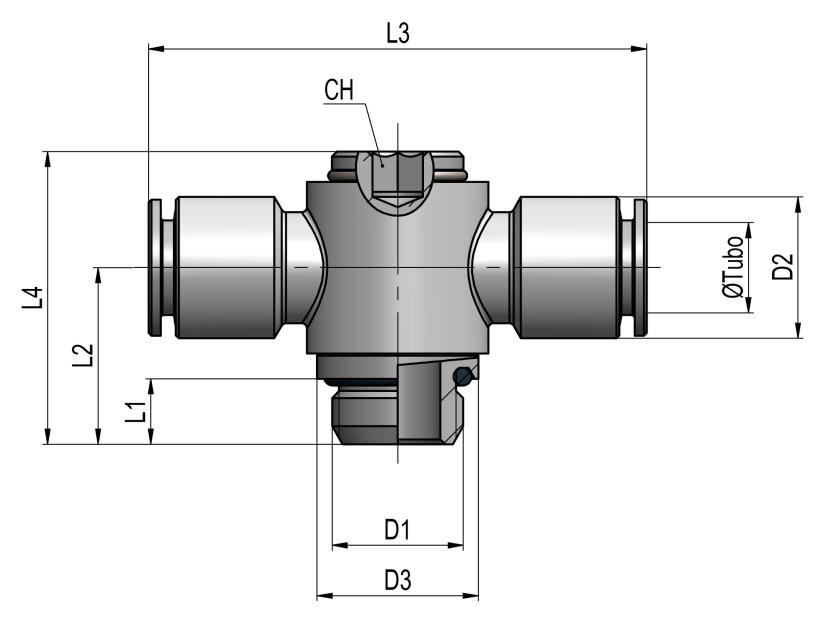

D tube: 4
D tube2: -
D1: G1/8
D1 (in): -
D2: 9
D2 (in): .354
D3: 14
D3 (in): .551
L1: 5
L2: 15
L2 (in): .591
L3: 41
L3 (in): 1.614
L4: 25,5
L4 (in): 1.004
L5: -
L5 (in): -
CH: 4
CH2: -
