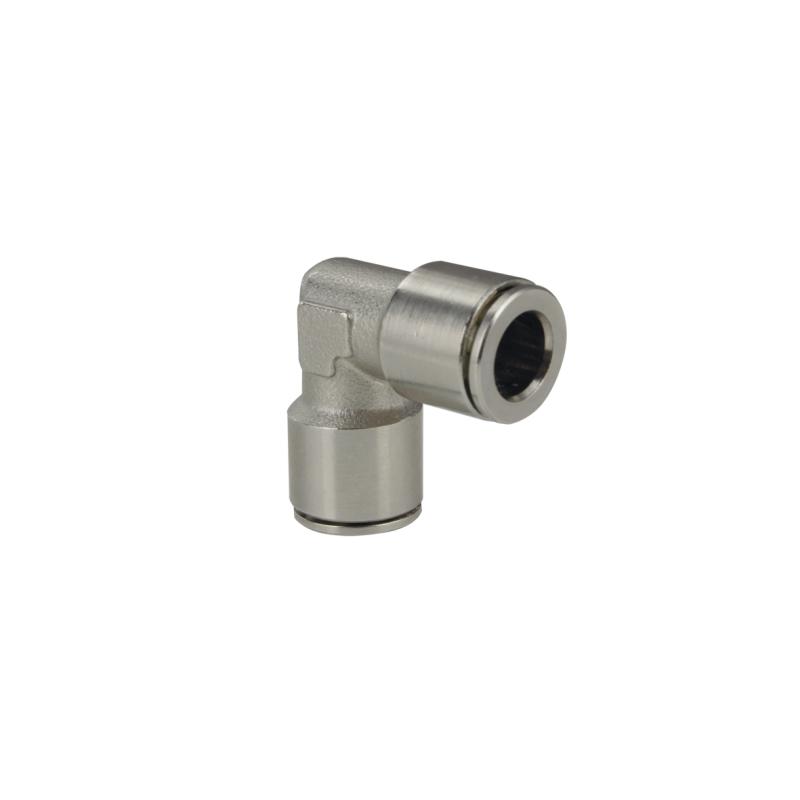

PUSH IN 90° UNION

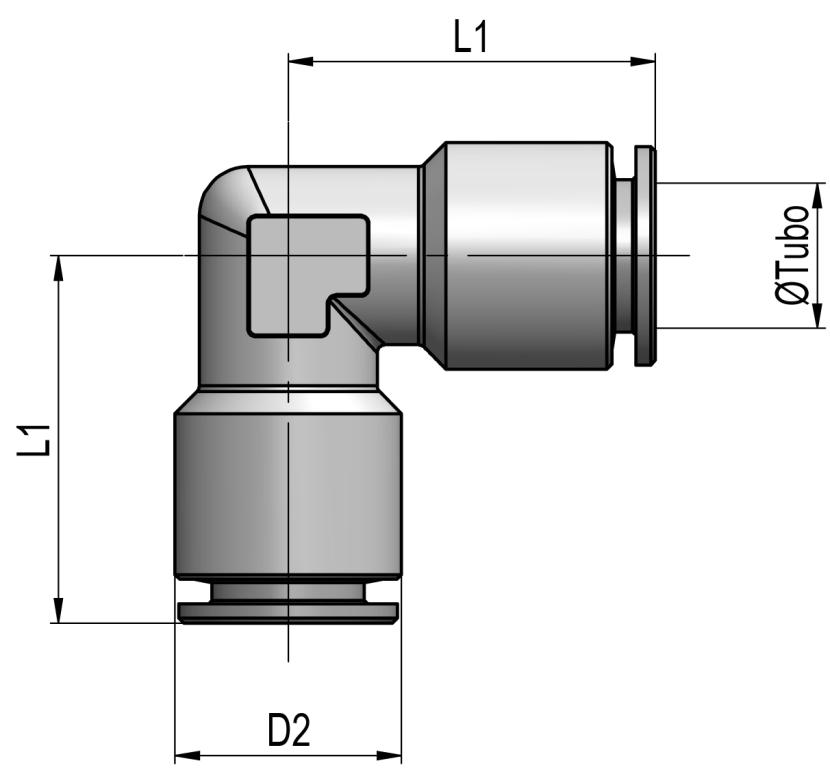

| TYPE | MAT | D1 | WT | WP | AF | D2 | D2IN | DTUBO | G | GOZ | L1 | L1IN | TV | TVH | WPP | WTF | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
| MA28 03 03 | Brass Nickel Plated | --- | -20/+80 °C | -0,99/20 bar | General Pneumatics | 7 | 0,276 | 3 | 4,5 | 0,159 | 12 | 0,472 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA28 04 04 | Brass Nickel Plated | --- | -20/+80 °C | -0,99/20 bar | General Pneumatics | 9 | 0,354 | 4 | 9 | 0,317 | 17,5 | 0,689 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA28 06 06 | Brass Nickel Plated | --- | -20/+80 °C | -0,99/20 bar | General Pneumatics | 12 | 0,472 | 6 | 16,5 | 0,582 | 20,5 | 0,807 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA28 08 08 | Brass Nickel Plated | --- | -20/+80 °C | -0,99/20 bar | General Pneumatics | 14 | 0,551 | 8 | 22 | 0,776 | 22,5 | 0,886 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA28 10 10 | Brass Nickel Plated | --- | -20/+80 °C | -0,99/20 bar | General Pneumatics | 16 | 0,63 | 10 | 29,5 | 1,041 | 25 | 0,984 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA28 12 12 | Brass Nickel Plated | --- | -20/+80 °C | -0,99/20 bar | General Pneumatics | 19 | 0,748 | 12 | 48,5 | 1,711 | 26,5 | 1,043 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA28 14 14 | Brass Nickel Plated | --- | -20/+80 °C | -0,99/20 bar | General Pneumatics | 22 | 0,866 | 14 | 58 | 2,046 | 31,5 | 1,24 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA28 16 16 | Brass Nickel Plated | --- | -20/+80 °C | -0,99/20 bar | General Pneumatics | 24 | 0,945 | 16 | 90,6 | 3,196 | 36,5 | 1,437 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
