Part Number: A0050051-PTFE

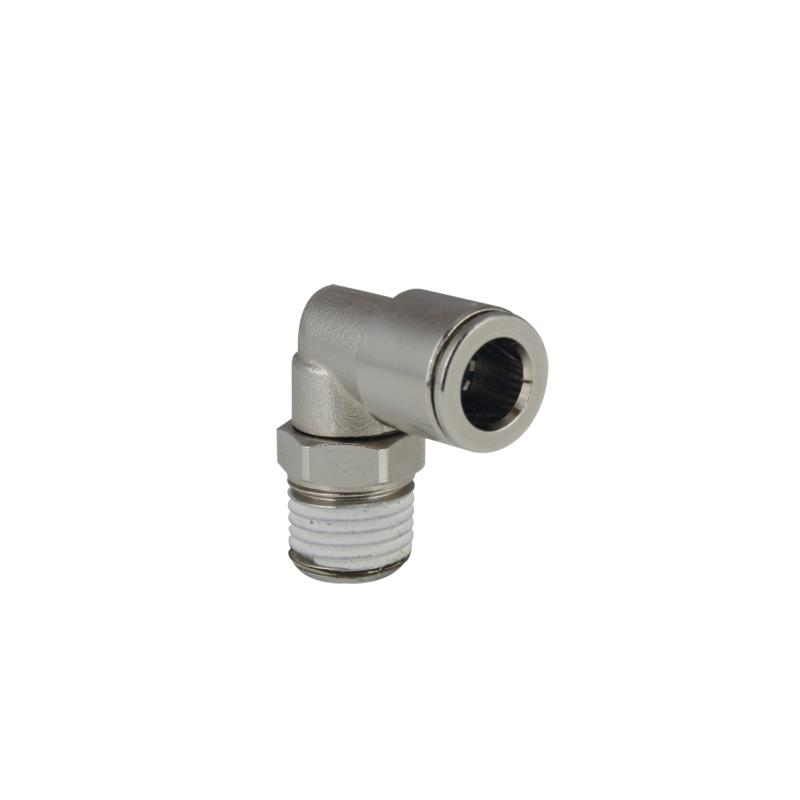

Description: MA15 10 18 PTFE
Weight (kg): 0,033193
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN 10226-1
Thread size: R1/8
Tube size (en): 10
Configuration (en): Elbow
Product Family (en): Push-In Fittings

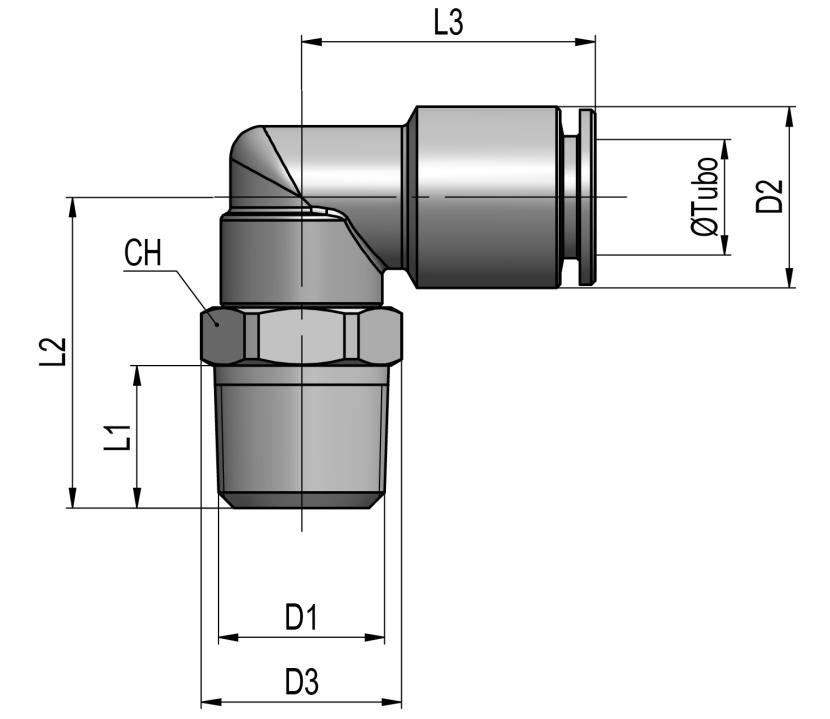

D tube: 10
D tube2: -
D1: R1/8
D1 (in): -
D2: 16
D2 (in): .630
D3: 20
D3 (in): .787
L1: 7,5
L2: 26,5
L2 (in): 1.043
L3: 23
L3 (in): .906
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 16
CH2: -
>
>
