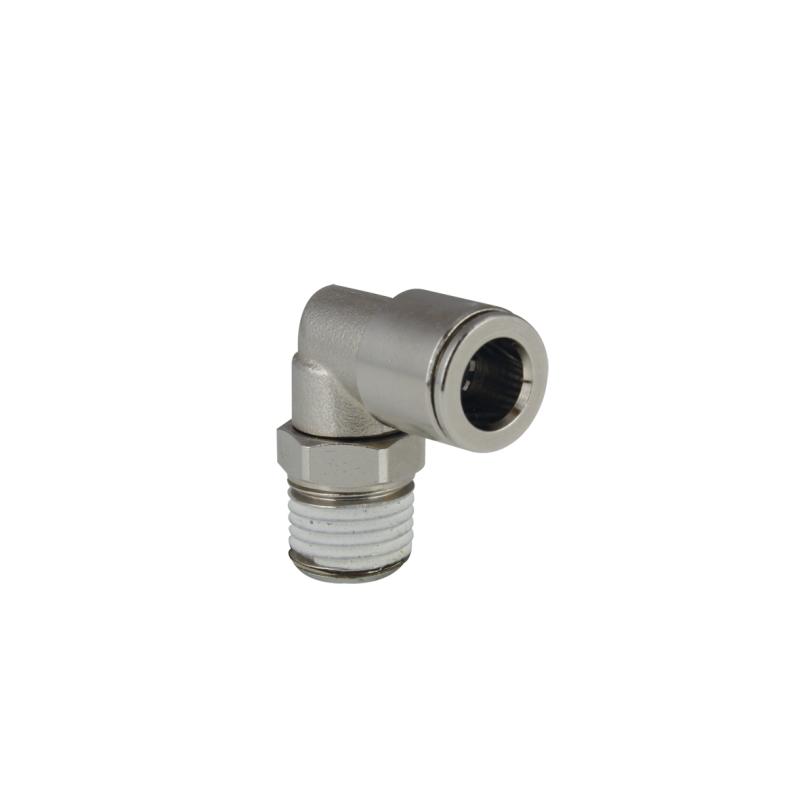

Push in male 90° BSPT - MA15 06 38 PTFE
6 mm - R3/8
4204975

Tube størrelse (mm): 6
Udvendig gevind: 3/8
MA15 06 38 PTFE
A0050033-PTFE
MOQ/Box size: 25
Part Number: A0050033-PTFE
Description: MA15 06 38 PTFE
Weight (kg): 0,031
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN 10226-1
Thread size: R3/8
Tube size (en): 6
Configuration (en): Elbow
Product Family (en): Push-In Fittings

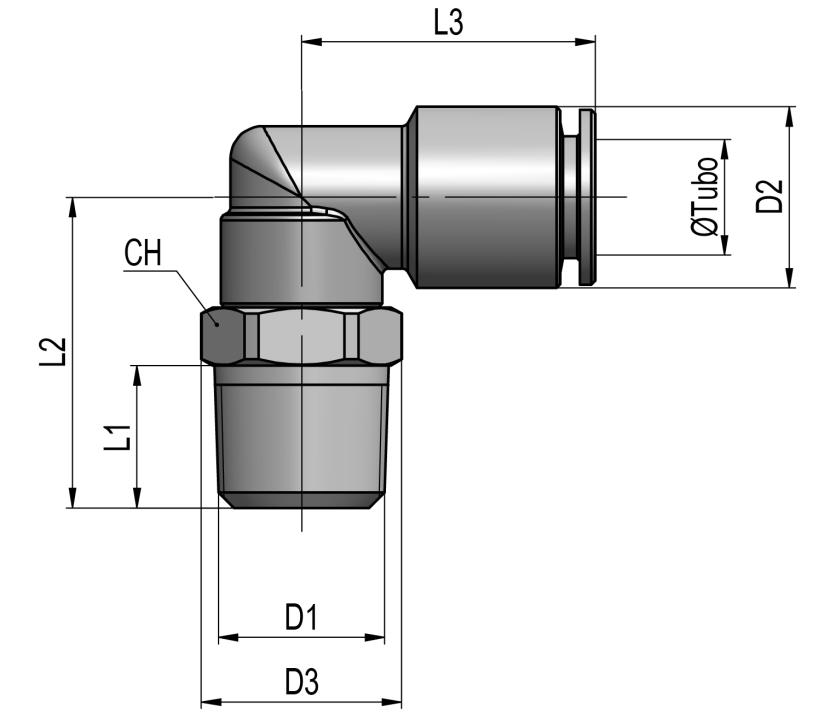

D tube: 6
D tube2: -
D1: R3/8
D1 (in): -
D2: 12
D2 (in): .472
D3: 20
D3 (in): .787
L1: 11,5
L2: 25,2
L2 (in): .992
L3: 22
L3 (in): .866
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: 18
CH2: -
