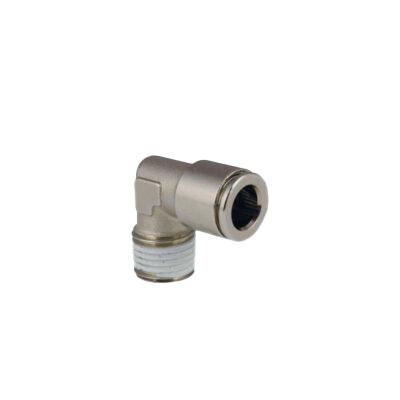

PUSH IN 90°

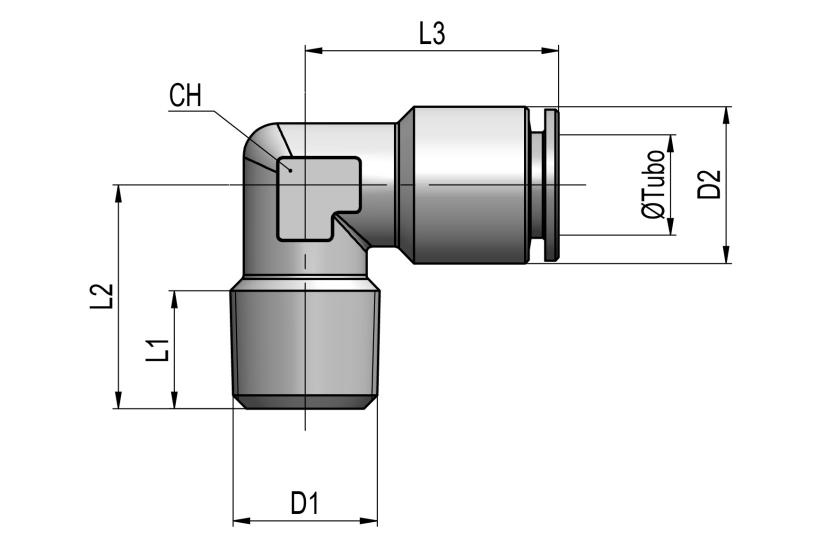

| CODE | TYPE | MAT | D1 | WT | WP | AF | D2 | D2IN | CH | DTUBO | G | L1 | L1IN | L2 | L2IN | L3 | L3IN | OZ | TV | TVH | WPP | WTF | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
| A0040011-PTFE | MA14 04 18 PTFE | Brass Nickel Plated | R1/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 9 | 0,354 | 8 | 4 | 8,1 | 7,8 | 0,307 | 15 | 0,591 | 17,5 | 0,689 | 0,286 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| A0040012-PTFE | MA14 04 14 PTFE | Brass Nickel Plated | R1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 9,1 | 0,358 | 10 | 4 | 13,9 | 10 | 0,394 | 19 | 0,748 | 17,5 | 0,689 | 0,49 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| A0040031-PTFE | MA14 06 18 PTFE | Brass Nickel Plated | R1/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 12 | 0,472 | 10 | 6 | 13,2 | 8,2 | 0,323 | 15,5 | 0,61 | 20,5 | 0,807 | 0,466 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| A0040032-PTFE | MA14 06 14 PTFE | Brass Nickel Plated | R1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 12 | 0,472 | 10 | 6 | 16,7 | 10 | 0,394 | 19 | 0,748 | 20,5 | 0,807 | 0,589 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| A0040041-PTFE | MA14 08 18 PTFE | Brass Nickel Plated | R1/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 14 | 0,551 | 12 | 8 | 19,6 | 7,5 | 0,295 | 19 | 0,748 | 22,5 | 0,886 | 0,691 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| A0040042-PTFE | MA14 08 14 PTFE | Brass Nickel Plated | R1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 14 | 0,551 | 12 | 8 | 22,6 | 10,5 | 0,413 | 20 | 0,787 | 22,5 | 0,886 | 0,797 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| A0040052-PTFE | MA14 10 14 PTFE | Brass Nickel Plated | R1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 16 | 0,63 | 14 | 10 | 27,1 | 9,5 | 0,374 | 22 | 0,866 | 25 | 0,984 | 0,956 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| A0040053-PTFE | MA14 10 38 PTFE | Brass Nickel Plated | R3/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 16 | 0,63 | 14 | 10 | 32,1 | 10,8 | 0,425 | 22,5 | 0,886 | 25 | 0,984 | 1,132 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
