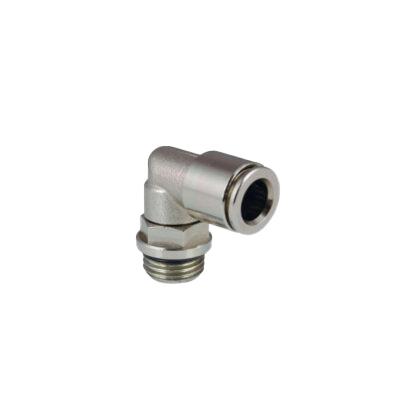

PUSH IN 90° M BSPP 12MM 1/4 > MA16 12 14

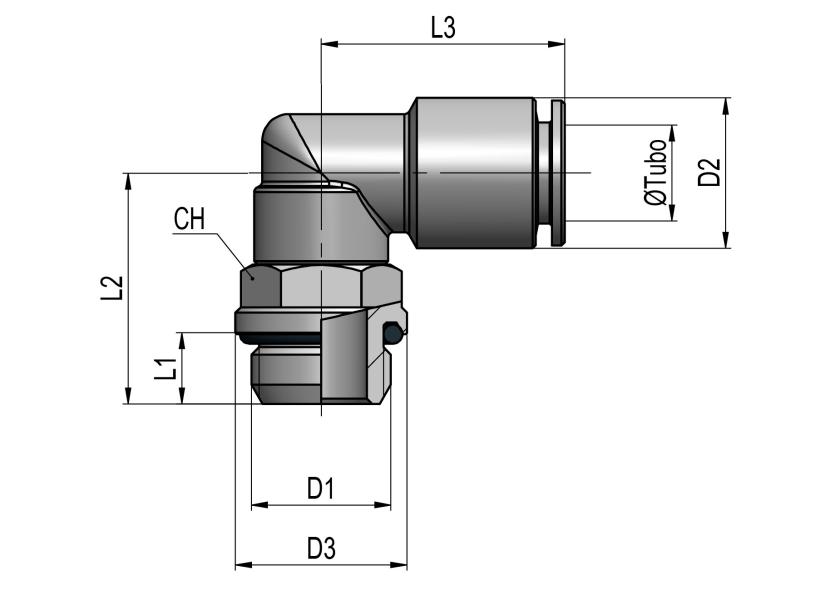

| TYPE | MAT | D1 | WT | WP | AF | D2 | D2IN | D3 | D3IN | CH | DTUBO | G | GOZ | L1 | L1IN | L2 | L2IN | L3 | L3IN | TV | TVH | WPP | WTF | CONFORMITY 1 | CONFORMITY 2 | CONFORMITY 3 |
| MA16 03 M5 | Brass Nickel Plated | M5x0,8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 7 | 0,276 | 10 | 0,394 | 9 | 3 | 7,1 | 0,25 | 4 | 0,157 | 14 | 0,551 | 14 | 0,551 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 04 M5 | Brass Nickel Plated | M5x0,8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 9,1 | 0,358 | 10 | 0,394 | 9 | 4 | 8,8 | 0,31 | 4 | 0,157 | 14 | 0,551 | 17,5 | 0,689 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 04 18 | Brass Nickel Plated | G1/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 9,1 | 0,358 | 14,5 | 0,571 | 13 | 4 | 15,7 | 0,554 | 5 | 0,197 | 18,2 | 0,717 | 19,5 | 0,768 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 04 14 | Brass Nickel Plated | G1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 9,1 | 0,358 | 16 | 0,63 | 13 | 4 | 19 | 0,67 | 6,5 | 0,256 | 21,7 | 0,854 | 19,5 | 0,768 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 06 M5 | Brass Nickel Plated | M5x0,8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 12 | 0,472 | 10 | 0,394 | 9 | 6 | 11,9 | 0,42 | 4 | 0,157 | 14 | 0,551 | 20,5 | 0,807 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 06 18 | Brass Nickel Plated | G1/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 12 | 0,472 | 14,5 | 0,571 | 13 | 6 | 18,5 | 0,653 | 5 | 0,197 | 18,2 | 0,717 | 22 | 0,866 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 06 14 | Brass Nickel Plated | G1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 12 | 0,472 | 16 | 0,63 | 13 | 6 | 22 | 0,776 | 6,5 | 0,256 | 21,7 | 0,854 | 22 | 0,866 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 06 38 | Brass Nickel Plated | G3/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 12 | 0,472 | 20 | 0,787 | 13 | 6 | --- | --- | 7 | 0,276 | 22,2 | 0,874 | 22 | 0,866 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 06 12 | Brass Nickel Plated | G1/2 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 12 | 0,472 | 25 | 0,984 | 13 | 6 | --- | --- | 8,5 | 0,335 | 24,2 | 0,953 | 22 | 0,866 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 08 18 | Brass Nickel Plated | G1/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 14 | 0,551 | 14,5 | 0,571 | 13 | 8 | 22 | 0,776 | 5 | 0,197 | 18 | 0,709 | 22,5 | 0,886 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 08 14 | Brass Nickel Plated | G1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 14 | 0,551 | 16 | 0,63 | 13 | 8 | 26 | 0,917 | 6,5 | 0,256 | 21,5 | 0,846 | 22,5 | 0,886 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 08 38 | Brass Nickel Plated | G3/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 14 | 0,551 | 20 | 0,787 | 16 | 8 | 36,8 | 1,298 | 7 | 0,276 | 25,5 | 1,004 | 23 | 0,906 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 08 12 | Brass Nickel Plated | G1/2 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 14 | 0,551 | 25 | 0,984 | 16 | 8 | 41 | 1,446 | 8,5 | 0,335 | 27,5 | 1,083 | 23 | 0,906 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 10 18 | Brass Nickel Plated | G1/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 16 | 0,63 | 18 | 0,709 | 16 | 10 | --- | --- | 5 | 0,197 | 20,5 | 0,807 | 26 | 1,024 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 10 14 | Brass Nickel Plated | G1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 16 | 0,63 | 18 | 0,709 | 16 | 10 | 32,5 | 1,146 | 6,5 | 0,256 | 22 | 0,866 | 26 | 1,024 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 10 38 | Brass Nickel Plated | G3/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 16 | 0,63 | 20 | 0,787 | 16 | 10 | 39,5 | 1,393 | 7 | 0,276 | 25,5 | 1,004 | 26 | 1,024 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 10 12 | Brass Nickel Plated | G1/2 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 16 | 0,63 | 25 | 0,984 | 16 | 10 | 43,2 | 1,524 | 8,5 | 0,335 | 27,5 | 1,083 | 26 | 1,024 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 12 14 | Brass Nickel Plated | G1/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 19 | 0,748 | 22,5 | 0,886 | 20 | 12 | 58,5 | 2,064 | 6,5 | 0,256 | 25,5 | 1,004 | 28,5 | 1,122 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 12 38 | Brass Nickel Plated | G3/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 19 | 0,748 | 22,5 | 0,886 | 20 | 12 | 57 | 2,011 | 7 | 0,276 | 26 | 1,024 | 28,5 | 1,122 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 12 12 | Brass Nickel Plated | G1/2 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 19 | 0,748 | 25 | 0,984 | 20 | 12 | 65,1 | 2,296 | 8,5 | 0,335 | 30,5 | 1,201 | 28,5 | 1,122 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 14 38 | Brass Nickel Plated | G3/8 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 22 | 0,866 | 22,5 | 0,886 | 20 | 14 | 61,6 | 2,173 | 7 | 0,276 | 26 | 1,024 | 32 | 1,26 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 14 12 | Brass Nickel Plated | G1/2 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 22 | 0,866 | 25 | 0,984 | 20 | 14 | 68,5 | 2,416 | 8,5 | 0,335 | 30,5 | 1,201 | 32 | 1,26 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 16 12 | Brass Nickel Plated | G1/2 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 24 | 0,945 | 27 | 1,063 | 25 | 16 | 105,2 | 3,711 | 8,5 | 0,335 | 33 | 1,299 | 36,5 | 1,437 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 16 34 | Brass Nickel Plated | G3/4 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 24 | 0,945 | 32 | 1,26 | 25 | 16 | 113,8 | 4,014 | 9,5 | 0,374 | 35 | 1,378 | 36,5 | 1,437 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 04 M6 | Brass Nickel Plated | M6x1 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 9,1 | 0,358 | 10 | 0,394 | 9 | 4 | 8,7 | 0,307 | 4,5 | 0,177 | 14,5 | 0,571 | 17,5 | 0,689 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 06 M6 | Brass Nickel Plated | M6x1 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 12 | 0,472 | 10 | 0,394 | 9 | 6 | 12 | 0,423 | 4,5 | 0,177 | 14,5 | 0,571 | 20,5 | 0,807 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 06 M12x1,25 | Brass Nickel Plated | M12x1,25 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 12 | 0,472 | 15 | 0,591 | 13 | 6 | 22 | 0,776 | 6,5 | 0,256 | 21,7 | 0,854 | 22 | 0,866 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
| MA16 06 M12x1,5 | Brass Nickel Plated | M12x1,5 | -20/+80 °C | -0,99/20 bar | General Pneumatics | 12 | 0,472 | 15 | 0,591 | 13 | 6 | 21,5 | 0,758 | 6,5 | 0,256 | 21,7 | 0,854 | 22 | 0,866 | -99 | 29" | -14/290 psi | -4/176 °F | SILICONE FREE | RoHS | REACH |
