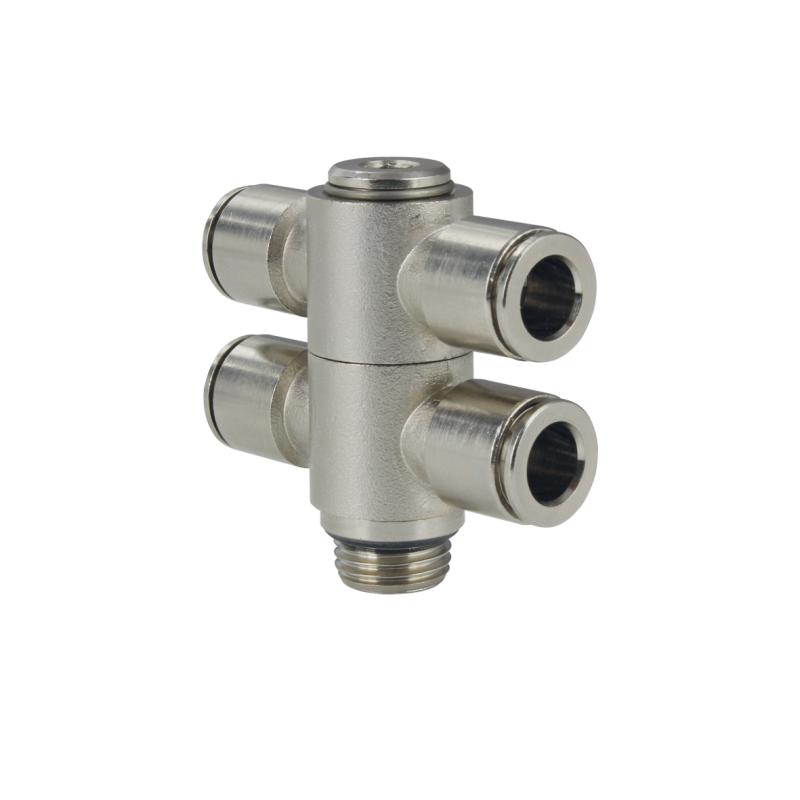

Part Number: A0320042
Description: MA42 08 14
Weight (kg): 0,0835
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: GAS UNI EN ISO 228-1
Thread size: G1/4
Tube size (en): 8
Configuration (en): Tee
Product Family (en): Push-In Fittings

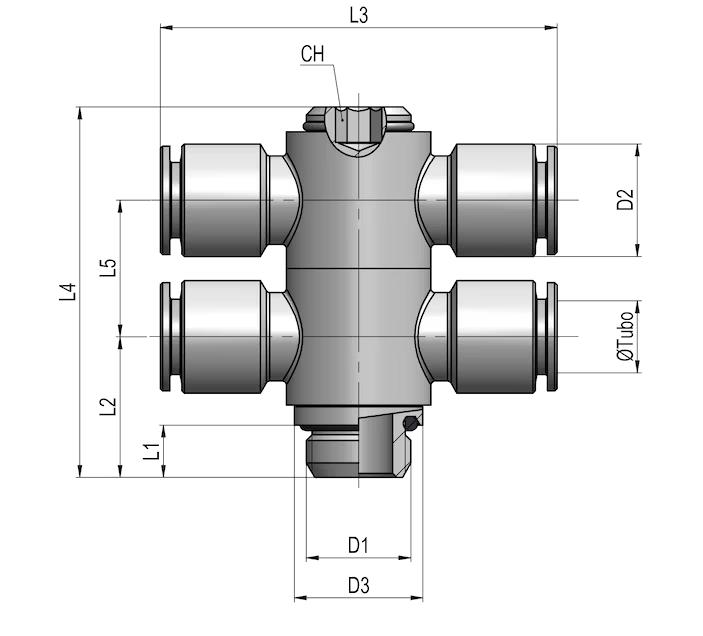

D tube: 8
D tube2: -
D1: G1/4
D1 (in): -
D2: 14
D2 (in): .551
D3: 18
D3 (in): .709
L1: 6,5
L2: 17,5
L2 (in): .689
L3: 49
L3 (in): 1.929
L4: 46,1
L4 (in): 1.815
L5: 17
L5 (in): .669
CH: 5
CH2: -
>
>
