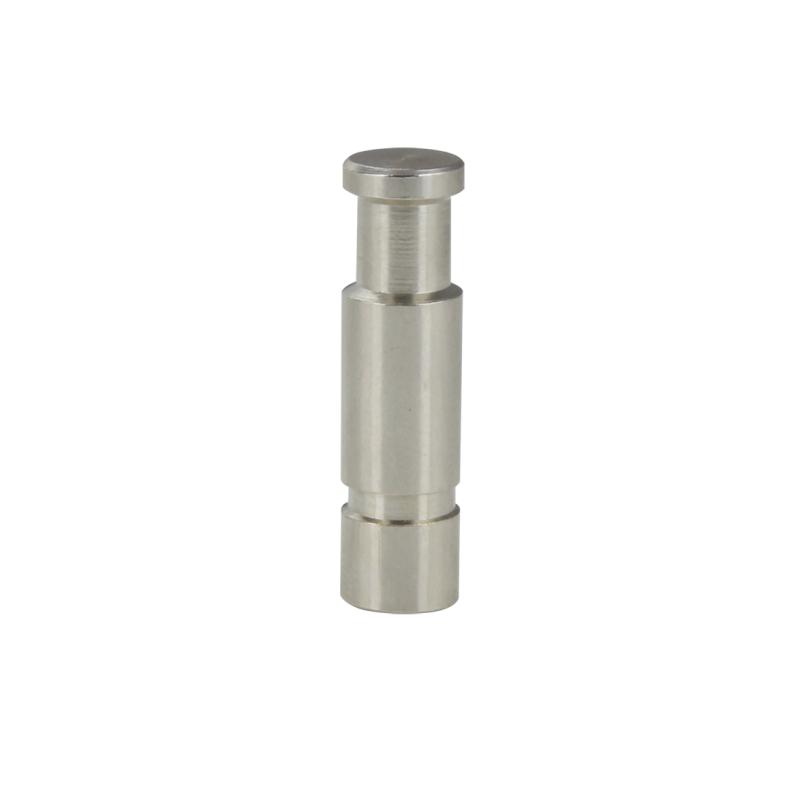

Part Number: A0300010
Description: MA40 00 04
Weight (kg): 0,00225
Dimension Unit: mm
Temperature Range (°C): -20/+80 °C
Temperature Range (°F): -4/176 °F
Pressure Range (bar): -0,99/20 bar
Pressure Range (psi): -14/290 psi
Material (en): Brass Nickel Plated
Thread Norm: NA
Thread size: NA
Tube size (en): 4
Configuration (en): Plug
Product Family (en): Push-In Fittings
D tube: -
D tube2: -

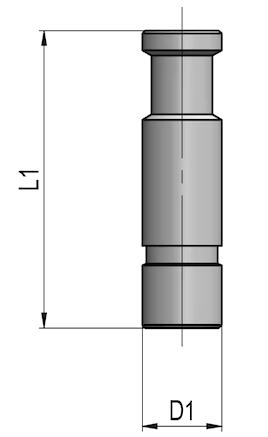

D1: 4
D1 (in): -
D2: -
D2 (in): -
D3: -
D3 (in): -
L1: 25
L2: -
L2 (in): -
L3: -
L3 (in): -
L4: -
L4 (in): -
L5: -
L5 (in): -
CH: -
CH2: -
>
>
