Unit net weight: 0.2332 Kg/m
Inner diameter (iØ): 6 mm
Outer diameter (oØ): 8 mm

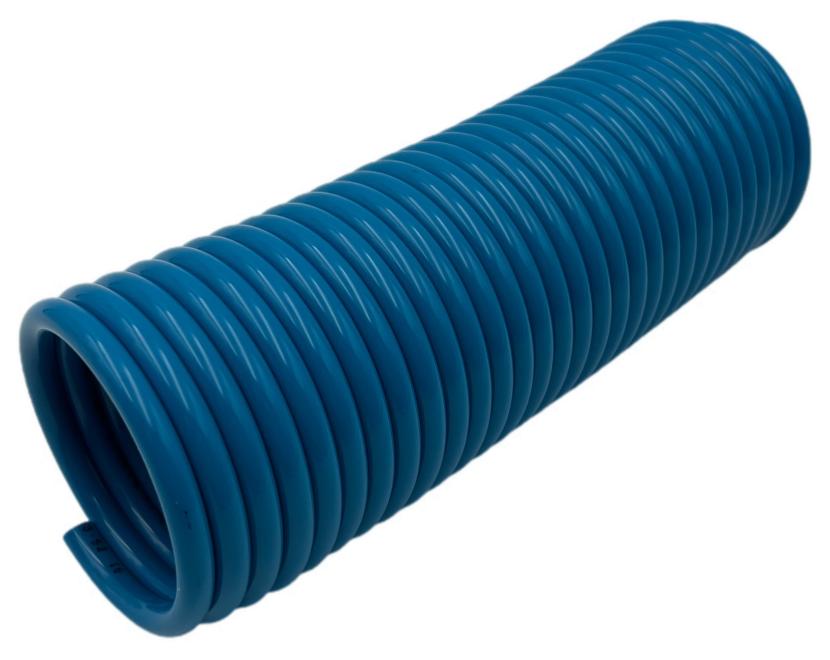

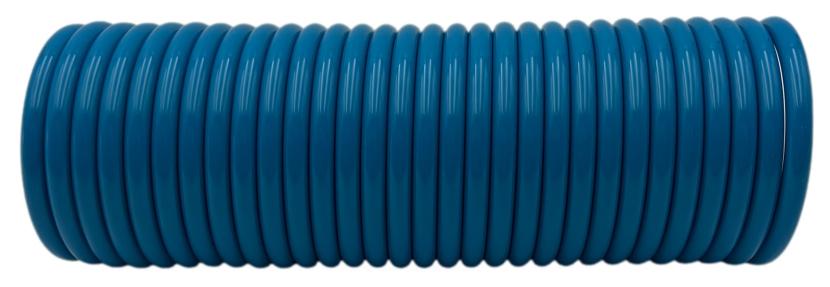

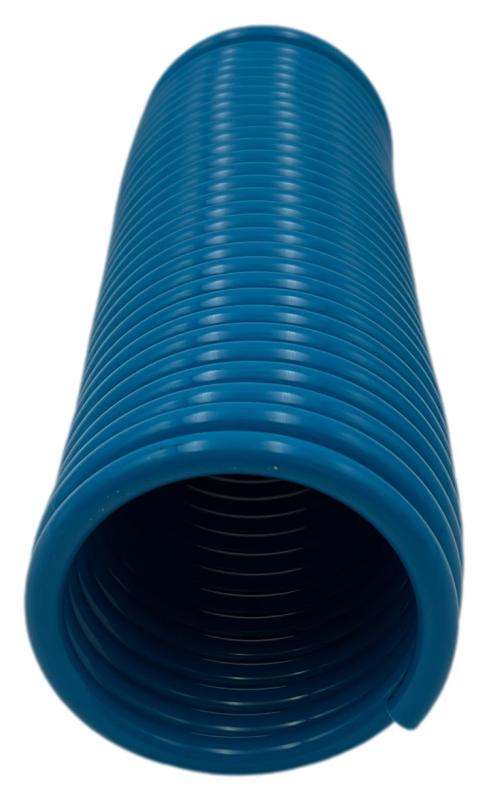

Print: Recoil hose in Ø 8X6 Rilsan® PA11
linear meters: 15 m
Working length: 6.5 m
Retracted length: 345 mm
Turns n: 41 N
Tale A: 0 mm
Tale B: 0 mm
winding Ø: 70 mm
outer Ø: 86 mm
Operating pressure (23°C - SF 3:1): 19 BAR
Wall thickness: 1 mm
Drawing num.: S139A
Operating pressure (23°C - SF 4:1): 14 BAR
Flexibility: 345 MPa
Hardness: 60 Sh D
Yield strength: 26 MPa
Breaking load: 48 MPa
Breaking deformation: >200 %
Elongation at yield: 52 %
Charpy notched impact strength (23°C): N.B. kJ/m2
Charpy impact strength (23°C): N.B. kJ/m2
Charpy notched impact strength (-40°C): 7 kJ/m2
Charpy impact strength (-40°C): N.B. kJ/m2
Melting point: 181 °C
Density: 1.04 g/cm3
